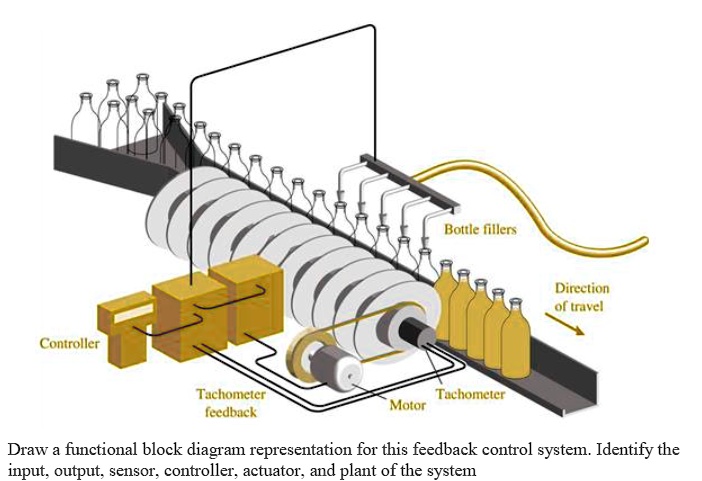

Controller Tachometer feedback Bottle fillers Tachometer Motor Direction of travel Draw a functional block diagram representation for this feedback control system. Identify the input, output, sensor, controller, actuator, and plant of the system
Added by Brandon M.
Close
Step 1
Input: The input to the system is the desired direction of travel for the bottle fillers. This can be controlled by a user or a pre-programmed sequence. Show more…
Show all steps
Your feedback will help us improve your experience
C D and 62 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

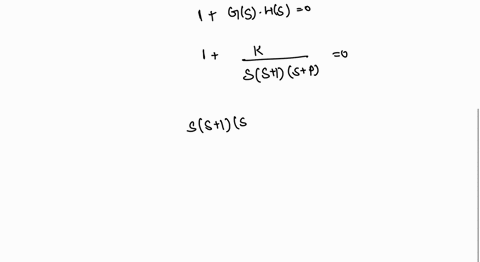

A bottle-filling line uses a feeder screw mechanism, as shown in Figure Q2. The tachometer feedback is used to maintain accurate speed control. Determine and plot the range of K and p that permits stable operation. Bottle fillers Direction of travel Controller Tachometer feedback Tachometer Motor (a) Controller Motor and screw 1 R(s) Y(s) Speed (s+1)(s+p) (b) Figure Q2.
Sri K.
Adi S.
Figure Q1 shows a simple diagram of liquid level control system. i. Draw a closed loop control system block diagram and identify the controlled variable and manipulated variable. ii. If the transfer function of the system is given as C(s)/R(s) = G(s)/(1 + G(s)H(s)), determine the output gain, C(s) when the gain of G(s)=10 and input gain, R(s)= 18. controller liquid inflow control valve level sensor liquid tank liquid outflow Figure Q1: Liquid level control system
