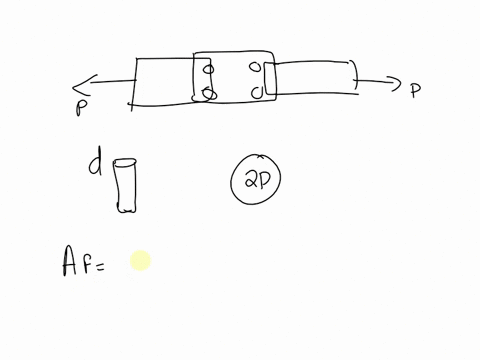

c) If the joint is subjected to an axial force of P = 9 kN, determine the average shear stress developed in each ofthe 6-mm diameter bolts between the plates and the members and along each of the four shaded shear planes. IO0 mm IO0 mm
Added by Xavier K.
Step 1
Given: - Diameter of the bolt = 6 mm - Dimensions of the member = 100 mm by 100 mm Area of bolt (Ab): Ab = π/4 * (0.006 m)^2 Ab = 28.274 * 10^-6 m^2 Area of member (Ap): Ap = 0.1 m * 0.1 m Ap = 0.01 m^2 Show more…
Show all steps
Close
Your feedback will help us improve your experience
Madhur L and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
If $P=5 \mathrm{kN}$, determine the average shear stress in the pins at $A, B,$ and $C .$ All pins are in double shear, and each has a diameter of $18 \mathrm{mm}$
Madhur L.

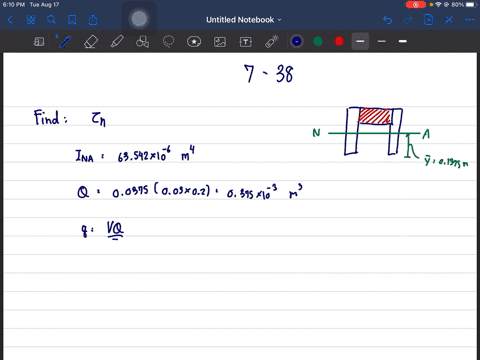

The beam is subjected to a shear of $V=2 \mathrm{kN}$ Determine the average shear stress developed in each nail if the nails are spaced $75 \mathrm{mm}$ apart on each side of the beam. Each nail has a diameter of $4 \mathrm{mm}$.
