Step 1
Step 1: Calculate the active power, P Active power, P, can be calculated using the formula: P = Vrms * Irms * cos(θ) Where Vrms is the root mean square voltage, Irms is the root mean square current, and θ is the phase angle between the voltage and current Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 89 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the average power, the reactive power, and the apparent power supplied by the voltage source in the circuit if vg = 50*cos(10e5*t) V
Adi S.
Calculate the active and reactive components of the current in each phase of a starconnected $5000 \mathrm{~V}, 3$ -phase, alternator supplying $3000 \mathrm{~kW}$ at a power factor of $0.8$.
Three-Phase Circuits
Polyphase System

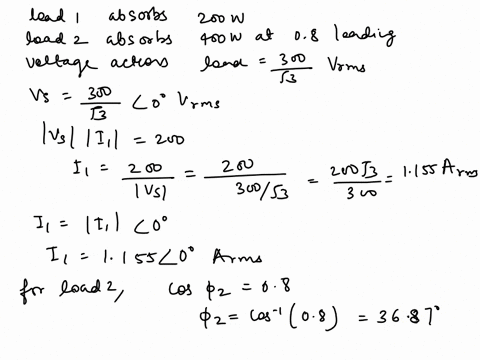

Determine the total power consumed by the load and the magnitude of the current supplied IL. 400 W, 0.8 power factor leading. 300 V rms. 200 W. Use up to 2 digits after the decimal point if necessary in your answers below. The total real power (in Watts) is: P = W. The total reactive power (in VAR) is: Q = VAR. (note: Q can be positive or negative). The overall power factor is: p. f. = (note: p. f. ranges between 0 and 1.00). The magnitude of current supplied (in Arms) is: |IL| = Arms.
