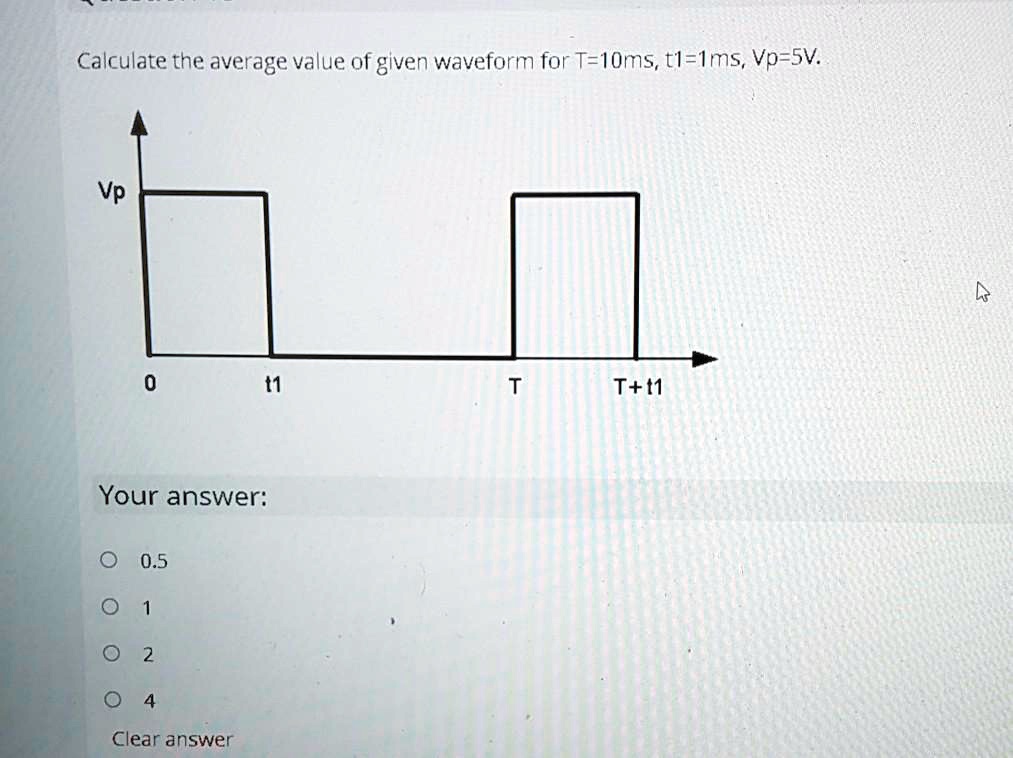

Calculate the average value of given waveform for T=10ms, t1=1ms, Vp=5V. Vp 0 t1 T T+t1 Your answer: 0.5 1 2 4 Clear answer
Added by Anthony P.
Close
Step 1
In this case, the waveform's values are: 0.5, 1, 2, 4. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

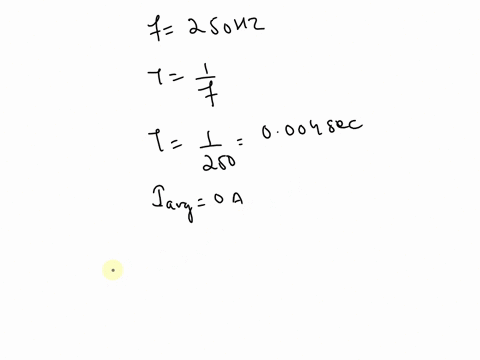

The current waveforms of a capacitor are shown in Figure below. Determine the average, root mean square (rms), and peak current ratings of the capacitor. Assume Ipeak = 400 A of a half sine-wave. t1 = 100 μs, fs = 250 Hz, t2 = 300 μs, t3 = 500 μs
Supreeta N.
The voltage waveform applied to a pure capacitor of 110 F is v(t) = { 10000t , 0 < t < 2 ms -10000t + 40 , 2 ms < t < 4 ms (a) Sketch the waveform for voltage v(t) (b) Plot the waveform for current i(t) (c) Plot the waveform for power p(t). (d) Calculate the average power, Pave. (e) Determine the average voltage, Vave. and the RMS value of the voltage waveform.
Joy C.
Calculate the average value of a half-wave rectified voltage with a peak value of 200 V. 0.637 mV 63.7 mV 63.7 V 36.7 V
Narayan H.
