Calculate the center frequency, the bandwidth, and the quality factor of a bandpass filter that has upper cutoff frequency of $200 \mathrm{krad} / \mathrm{s}$ and a lowe cutoff frequency of $180 \mathrm{krad} / \mathrm{s}$.
Added by John M.
Step 1
Center frequency: The center frequency is the geometric mean of the upper and lower cutoff frequencies. $$f_c = \sqrt{f_{upper} \cdot f_{lower}}$$ $$f_c = \sqrt{(200 \times 10^3) \cdot (180 \times 10^3)}$$ $$f_c = \sqrt{36 \times 10^6}$$ $$f_c = 190 \times Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 70 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Design the KHN circuit of Fig. $16.24(\mathrm{a})$ to realize a bandpass filter with a center frequency of $1 \mathrm{kHz}$ and a 3-dB bandwidth of 50 Hz. Use 10-nF capacitors. Give the complete circuit and specify all component values. What value of center-frequency gain is obtained?
Eduard S.

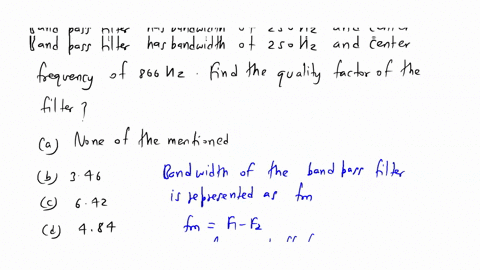

A band-pass filter has a bandwidth of 250Hz and a center frequency of 866Hz. Find the quality factor of the filter.
