Calculate the distribution factor for a single layer three-phase winding with the values of q = 2 and angular displacement between the slots is 60 degrees. (q – nos. of slots per poles per phase)
Added by Zibusiso N.
Your feedback will help us improve your experience
Sri K and 57 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

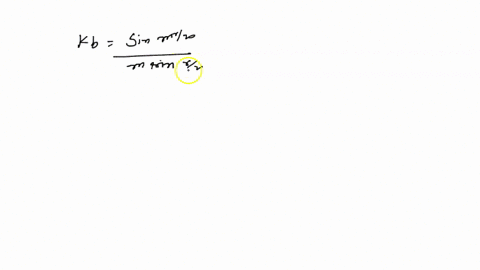

Q1: Calculate the voltage per phase for a 3-phase 1500 rpm, 4-pole alternator having 16 conductors per slot connected in two layers. The slots per pole per phase are 8, and the coil span is 20 slots. The phase spread is 60, and the flux per pole is 25.8 x 10^7 weber.
Sri K.

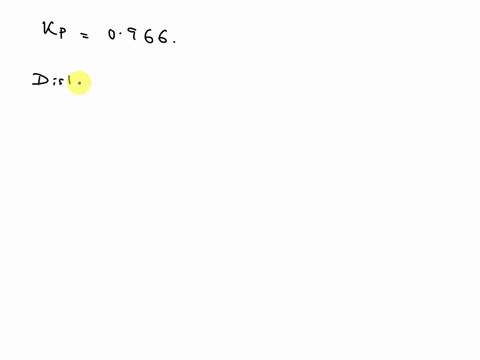

An 8 pole, 3 phase, 600 spread, double layer winding has 72 coils in 72 slots. The coils are short pitched by two slots. Calculate the winding factor for the fundamental and third harmonic.
Madhur L.
Find the RMS value of phase voltage for a 3-phase, 50 Hz, 20-pole, 180-slot synchronous generator having a single-layer winding with full-pitch coils. The coils are connected in 60° phase groups, and each coil has 6 turns. All the coils of a phase are in series. The flux per pole is 0.025 Wb.
