Question

Calculate the effective capacitance of the circuit shown below. Show all necessary computations. * C1 = 5 pF C2 = 3 pF C3 = 6 pF C4 = 8 pF C5 = 9 pF C6 = 15 pF

          Calculate the effective capacitance of the circuit shown below. Show all necessary computations. *

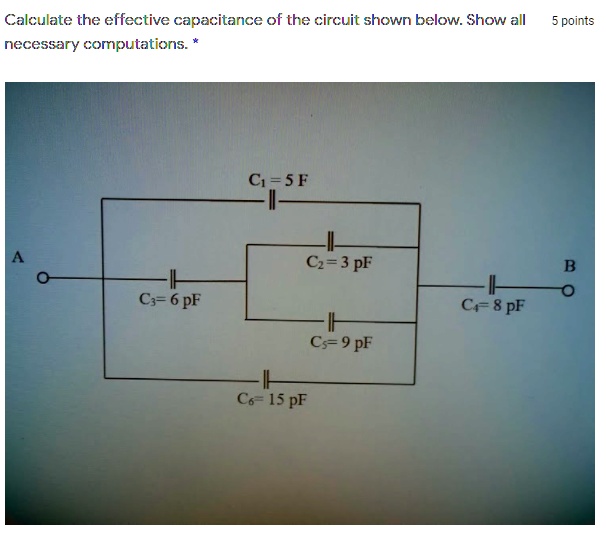

C1 = 5 pF
C2 = 3 pF
C3 = 6 pF
C4 = 8 pF
C5 = 9 pF
C6 = 15 pF

Added by Sally N.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Pritesh Ranjan

04/01/2022

Step 1

Without a visual diagram, we'll assume a common scenario where capacitors are combined in series and parallel arrangements. The given capacitors are C1 = 5 pF, C2 = 3 pF, C3 = 6 pF, C4 = 8 pF, C5 = 9 pF, and C6 = 15 pF. We'll need to know which are in series and Show more…

Show all steps
