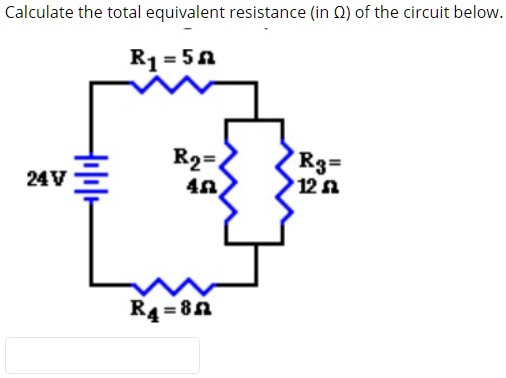

Calculate the total equivalent resistance (in ?) of the circuit below. 24V R1 = 5 ? R2 = 4 ? R3 = 12 ? R4 = 8 ?
Added by Melanie S.
Close
Step 1
Given R2 = 4Ω and R3 = 12Ω. 1/R23 = 1/R2 + 1/R3 1/R23 = 1/4 + 1/12 1/R23 = 3/12 + 1/12 1/R23 = 4/12 R23 = 12/4 R23 = 3Ω Show more…
