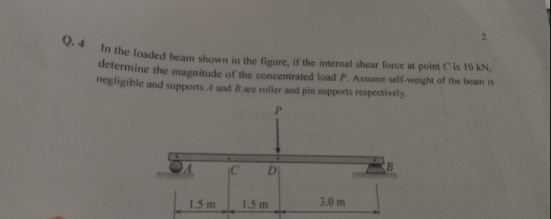

In the loaded beam shown in the figure, if the internal shear force at point C is 10 kN, determine the magnitude of the concentrated load P. Assume self-weight of the beam is negligible and supports A and B are roller and pin supports respectively.
Added by Rek B.
Close
Step 1
Step 1: Calculate the reaction force RB using the moment equilibrium equation. Show more…
Show all steps
