Three 440-volt generators form a delta-connected source which is connected to a balanced delta-connected load of $Z_L = (8.66 + j5)\Omega$ per phase as shown below. 6. 5.00 points Determine the value of $I_{AC}$ and $I_{AB}$. Assume $V_{AC} = 440\angle0^\circ V$ and a positive phase sequence. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. The value of $I_{AC} =$ The value of $I_{AB} = $
Added by David G.
Close
Step 1
We can use Ohm's Law to do this. Ohm's Law states that the current (I) is equal to the voltage (V) divided by the impedance (Z). In this case, the voltage is given as Vc = 4400V and the impedance is given as Z = 8.66 +/5Q per. So, we can calculate the current Show more…
Show all steps
Your feedback will help us improve your experience
Sachin Rao and 95 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

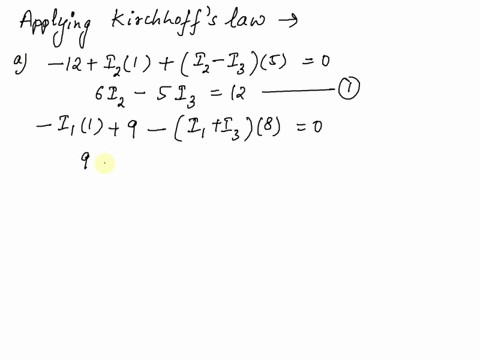

26.59(a) Calculate the three currents I1, I2, and I3 indicated in the circuit diagram shown in Fig. P26.59. (b) Compute the power supplied by, or dissipated by, each of the two sources of potential difference. In each case, state whether the power is supplied to, or drawn from the circuit. P12V = P9V =
Madhur L.

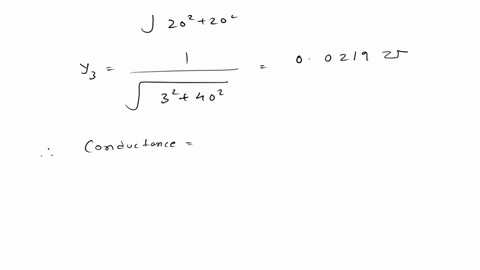

Three impedances Z1, Z2, Z3 are connected in parallel across a 230V, 50 Hz supply. The values are given Z1 = 12 ∠30°, Z2 = 8 ∠-30°, Z3 = 10 ∠60°. Calculate the total admittance, equivalent impedance, total current, power factor, and power consumed by the whole circuit.
Sri K.

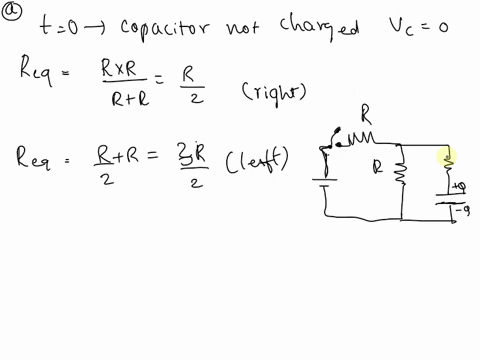

Part B At t = ∞, the currents can be determined by analyzing a simpler, equivalent circuit. Identify this and implement it in finding the values of I1, I2, and I3 at t = ∞. Express your answer in terms of the variables Ɛ and R. Enter your answers separated by commas. I1, I2, I3 = Part C At t = ∞, what is the potential difference across the capacitor? Express your answer in terms of Ɛ.
