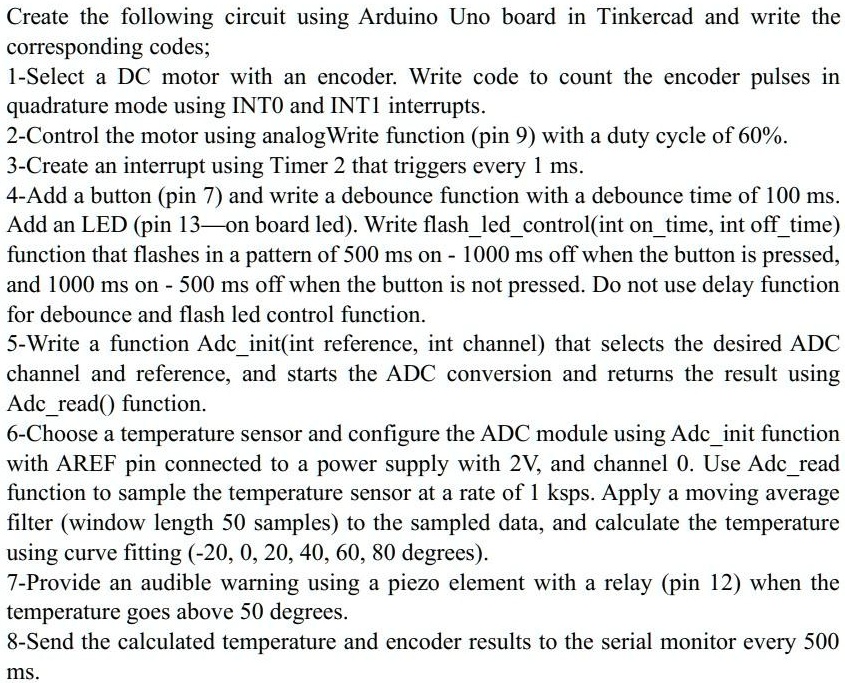

Create the following circuit using Arduino Uno board in Tinkercad and write the corresponding codes; 1-Select a DC motor with an encoder. Write code to count the encoder pulses in quadrature mode using INTO and INT1 interrupts. 2-Control the motor using analogWrite function (pin 9) with a duty cycle of 60%. 3-Create an interrupt using Timer 2 that triggers every 1 ms. 4-Add a button (pin 7) and write a debounce function with a debounce time of 100 ms. Add an LED (pin 13\--on board led). Write flash_led_control(int on_time, int off_time) function that flashes in a pattern of 500 ms on - 1000 ms off when the button is pressed, and 1000 ms on - 500 ms off when the button is not pressed. Do not use delay function for debounce and flash led control function. 5-Write a function Adc_init(int reference, int channel) that selects the desired ADC channel and reference, and starts the ADC conversion and returns the result using Adc_read() function. 6-Choose a temperature sensor and configure the ADC module using Adc_init function with AREF pin connected to a power supply with 2V, and channel 0. Use Adc_read function to sample the temperature sensor at a rate of 1 ksps. Apply a moving average filter (window length 50 samples) to the sampled data, and calculate the temperature using curve fitting (-20, 0, 20, 40, 60, 80 degrees). 7-Provide an audible warning using a piezo element with a relay (pin 12) when the temperature goes above 50 degrees. 8-Send the calculated temperature and encoder results to the serial monitor every 500 ms.

          Create the following circuit using Arduino Uno board in Tinkercad and write the corresponding codes;
1-Select a DC motor with an encoder. Write code to count the encoder pulses in quadrature mode using INTO and INT1 interrupts.
2-Control the motor using analogWrite function (pin 9) with a duty cycle of 60%.
3-Create an interrupt using Timer 2 that triggers every 1 ms.
4-Add a button (pin 7) and write a debounce function with a debounce time of 100 ms. Add an LED (pin 13\--on board led). Write flash_led_control(int on_time, int off_time) function that flashes in a pattern of 500 ms on - 1000 ms off when the button is pressed, and 1000 ms on - 500 ms off when the button is not pressed. Do not use delay function for debounce and flash led control function.
5-Write a function Adc_init(int reference, int channel) that selects the desired ADC channel and reference, and starts the ADC conversion and returns the result using Adc_read() function.
6-Choose a temperature sensor and configure the ADC module using Adc_init function with AREF pin connected to a power supply with 2V, and channel 0. Use Adc_read function to sample the temperature sensor at a rate of 1 ksps. Apply a moving average filter (window length 50 samples) to the sampled data, and calculate the temperature using curve fitting (-20, 0, 20, 40, 60, 80 degrees).
7-Provide an audible warning using a piezo element with a relay (pin 12) when the temperature goes above 50 degrees.
8-Send the calculated temperature and encoder results to the serial monitor every 500 ms.
