PROBLEM #3 (40 points): You are provided the equilibrium phase diagram for Silver (Ag) and Copper (Cu) in Figure 3. Determine the following: • The percent liquid and solid at 1652°F for an alloy with 22% silver. • The phase(s) at this state point. • The degree(s) of freedom at this state point. • The eutectic composition and temperature for this alloy. • The degree(s) of freedom at Points A, B, and G on the diagram.

          PROBLEM #3 (40 points):

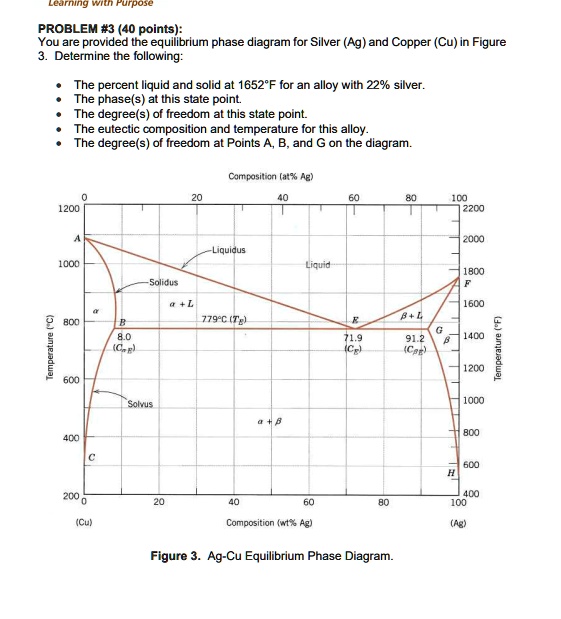

You are provided the equilibrium phase diagram for Silver (Ag) and Copper (Cu) in Figure 3. Determine the following:

• The percent liquid and solid at 1652°F for an alloy with 22% silver.
• The phase(s) at this state point.
• The degree(s) of freedom at this state point.
• The eutectic composition and temperature for this alloy.
• The degree(s) of freedom at Points A, B, and G on the diagram.

PROBLEM #3 (40 points):
You are provided the equilibrium phase diagram for Silver (Ag) and Copper (Cu) in Figure 3. Determine the following:

• The percent liquid and solid at 1652°F for an alloy with 22% silver.
• The phase(s) at this state point.
• The degree(s) of freedom at this state point.
• The eutectic composition and temperature for this alloy.
• The degree(s) of freedom at Points A, B, and G on the diagram.
