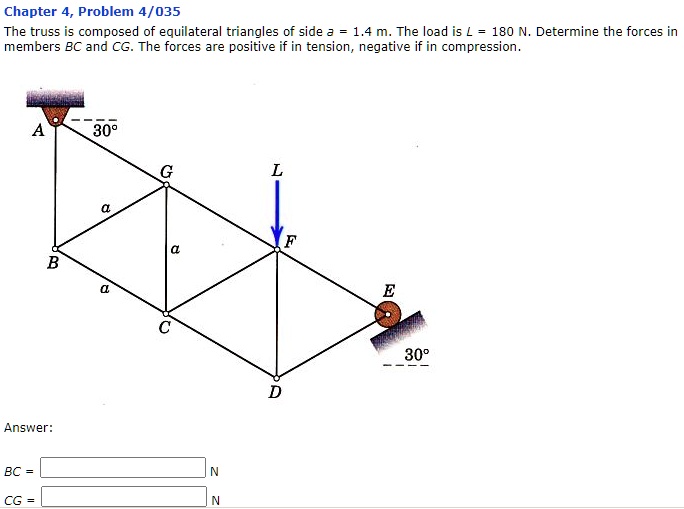

Chapter 4, Problem 4/035 The truss is composed of equilateral triangles of side a = 1.4 m. The load is L = 180 N. Determine the forces in members BC and CG. The forces are positive if in tension, negative if in compression.
Added by Amanda B.
Close
Step 1
2 * 1.4 * 3/2 + R_BC * 1.4 * cos(30°) + R_CG * 1.4 * cos(30°) = 0 -735.28 + 1.4 * 3/2 * (R_BC + R_CG) = 0 -735.28 + 2.1 * (R_BC + R_CG) = 0 2.1 * (R_BC + R_CG) = 735.28 R_BC + R_CG = 350.13 Show more…
Show all steps
