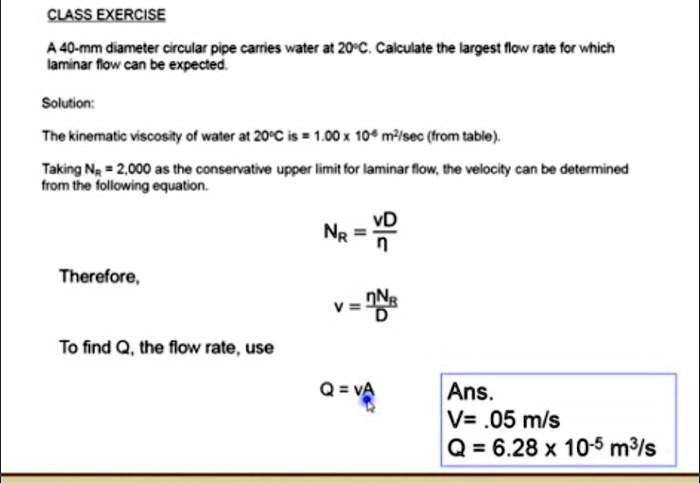

A 40-mm diameter circular pipe carries water at 20°C. Calculate the largest flow rate for which laminar flow can be expected. Solution: The kinematic viscosity of water at 20°C is = 1.00 x 10^-6 m²/sec (from table). Taking NR = 2,000 as the conservative upper limit for laminar flow, the velocity can be determined from the following equation. NR = vD / ? Therefore, v = ?NR / D To find Q, the flow rate, use Q = vA Ans. V= .05 m/s Q = 6.28 x 10^-5 m³/s

          A 40-mm diameter circular pipe carries water at 20°C. Calculate the largest flow rate for which laminar flow can be expected.

Solution:
The kinematic viscosity of water at 20°C is = 1.00 x 10^-6 m²/sec (from table).
Taking NR = 2,000 as the conservative upper limit for laminar flow, the velocity can be determined from the following equation.

NR = vD / ?

Therefore,
v = ?NR / D

To find Q, the flow rate, use
Q = vA

Ans.
V= .05 m/s
Q = 6.28 x 10^-5 m³/s

A 40-mm diameter circular pipe carries water at 20°C. Calculate the largest flow rate for which laminar flow can be expected.

Solution:
The kinematic viscosity of water at 20°C is = 1.00 x 10^-6 m²/sec (from table).
Taking NR = 2,000 as the conservative upper limit for laminar flow, the velocity can be determined from the following equation.

NR = vD / ?

Therefore,
v = ?NR / D

To find Q, the flow rate, use
Q = vA

Ans.
V= .05 m/s
Q = 6.28 x 10^-5 m³/s

Added by Mercedes J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supratim Pal

12/26/2023

Step 1

First, we need to find the velocity (v) of the water. We know that the kinematic viscosity (n) of water at 20°C is 1.00 x 10^(-6) m^2/s. We also know that the diameter (D) of the pipe is 40 mm or 0.04 m. The conservative upper limit for laminar flow (Na) is 2.000. Show more…

Show all steps

Thanks for your feedback!

A 40-mm diameter circular pipe carries water at 20°C. Calculate the largest flow rate for which laminar flow can be expected. Solution: The kinematic viscosity of water at 20°C is 1.00 x 10^-6 m^2/s from the table. Taking NR = 2,000 as the conservative upper limit for laminar flow, the velocity can be determined from the following equation: NR = vD / η Therefore, v = ηNR / D To find Q, the flow rate, use: Q = vA Ans. V = .05 m/s Q = 6.28 x 10^-5 m^3/s
