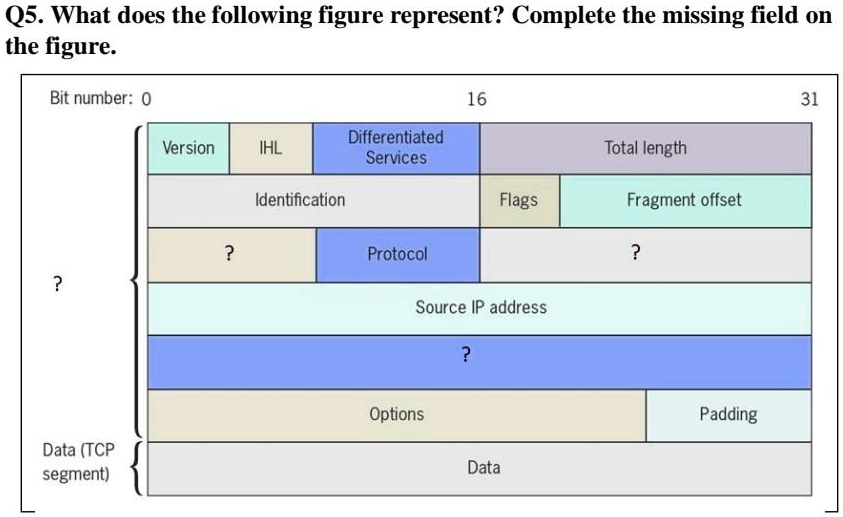

Q5. What does the following figure represent? Complete the missing field on the figure. Bit number: 0 16 31 Version IHL Differentiated Services Total length Identification Flags Fragment offset ? ? Protocol ? Source IP address ? Options Padding Data (TCP segment) Data
