Compute the safe wall thickness of a 76.2 cm diameter steel tank. The tank is subjected to 7.33 Mpa pressure and the steel material has yield stress of 215.4 Mpa. The factor of safety to use is 3 A. 1 ½ inches B. 3.89 cm C. 4.09 cm D. 3.59 cm
Added by Marcia F.
Step 1
We are given the diameter of the tank (D) = 76.2 cm, the pressure (P) = 7.33 MPa, the yield stress (S) = 215.4 MPa, and the factor of safety (FS) = 3. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Madhur L and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A large spherical tank (see figure) contains gas at a pressure of $3.5 \mathrm{MPa}$. The tank is $20 \mathrm{m}$ in diameter and is constructed of high-strength steel having a yield stress in tension of $550 \mathrm{MPa}$ (a) Determine the required thickness of the wall of the tank if a factor of safety of 3.5 with respect to yielding is required. (b) If the tank wall thickness is $100 \mathrm{mm}$, what is the maximum permissible internal pressure?
Application of Plane Stress (Pressure Vessels, Beams, and Combined Loadings)
Spherical Pressure Vessels

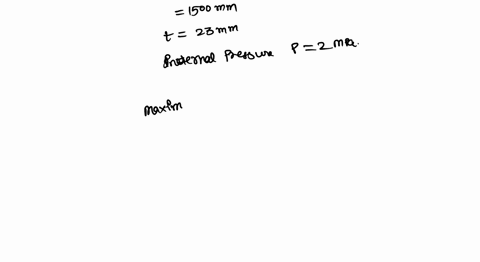

A cylindrical tank with hemispherical heads is constructed of steel sections that are welded circumferentially (see figure). The tank diameter is 1.5 m, the wall thickness is 23 mm, and the internal pressure is 2 MPa: Determine the maximum shear stress in the cylindrical tank. None b. 16.30 MPa 22.67 MPa d. 32.61 MPa 62.50 MPa
Sri K.
A thin-walled steel tank has an outside diameter of 600 mm and a length of 3 m. It is subjected to an internal pressure of 2 MPa. What is the minimum thickness of the tank if the allowable design stress is 75 MPa? If the thickness of the tank is 8 mm, determine the circumferential stress in the tank.
Adi S.
