Compute the voltage across the capacitor at $t = 2 \mu S$. (with two decimal points) 100 $\Omega$ $t = 0$ $+$ $\nu$ 2 nF 200 $\Omega$ + 4 V 150 $\Omega$
Added by Christopher D.
Close
Step 1
The time constant of the circuit is given by: $\tau = RC = (200 \Omega + 100 \Omega + 150 \Omega)(2 nF) = 900 \times 10^{-9} s = 900 ns$ Show more…
Show all steps
Your feedback will help us improve your experience
Mirza Aslam Beig and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
What is the instantaneous voltage across a $2-\mu \mathrm{F}$ capacitor when the current through it is \[ i=4 \sin \left(10^{6} t+25^{\circ}\right) \mathrm{A} ? \].

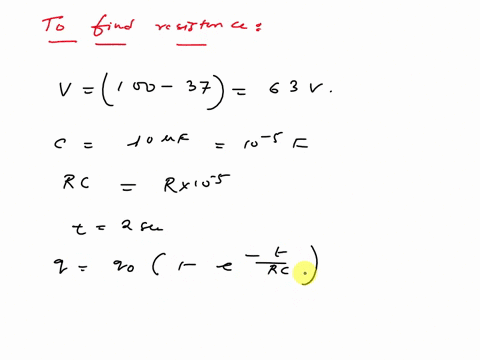

16) The figure shows a simple RC circuit consisting of a 100.0-V battery in series with a 10.0-μF capacitor and a resistor. Initially, the switch S is open and the capacitor is uncharged. Two seconds after the switch is closed, the voltage across the resistor is 37 V. [Hint: q = qo (1 - e^-t/RC ) ] A: 2.6x10^4 Ω B: 3.4x10^5 Ω C: 5.3x10^4 Ω D: 2.0x10^5 Ω E: 4.3x10^5 Ω
Madhur L.

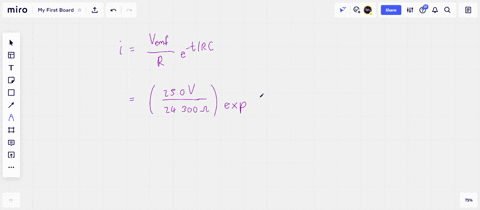

A $14.9-\mu F$ capacitor, a $24.3-\mathrm{k} \Omega$ resistor, a switch, and a 25.-V battery are connected in series. What is the rate of change of the electric field between the plates of the capacitor at $t=0.3621 \mathrm{~s}$ after the switch is closed? The area of the plates is $1.00 \mathrm{~cm}^{2}$ .
