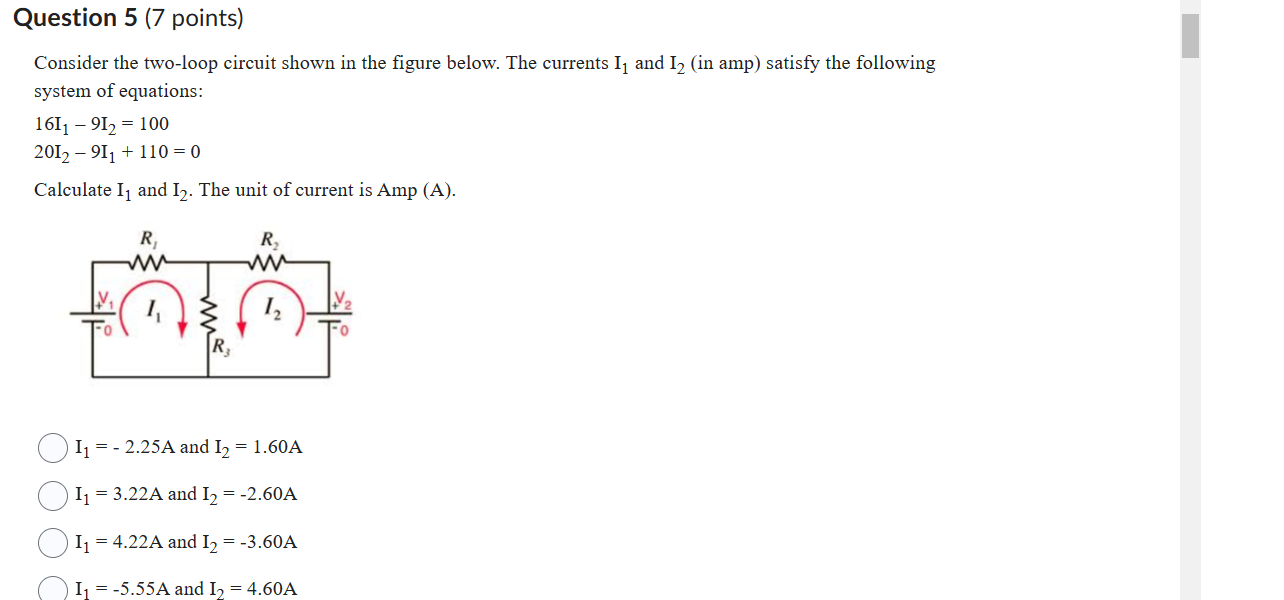

Consider the two-loop circuit shown in the figure below. The currents I1 and I2 (in amp) satisfy the following system of equations: 16I1 - 9I2 = 100 20I2 - 9I1 + 110 = 0 Calculate I1 and I2. The unit of current is Amp (A). I1 = - 2.25A and I2 = 1.60A I1 = 3.22A and I2 = -2.60A I1 = 4.22A and I2 = -3.60A I1 = -5.55A and I2 = 4.60A
Added by Emmanuel J.
Close
Your feedback will help us improve your experience
Hoan Nguyen and 77 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the circuit diagram in the figure. What is the equation that results when applying the loop rule to loop aedcba, in terms of the variables given in the figure? 0 = If the current through the middle part of the loop is I1 = 4.75 amps, what is the current through the top loop, I2, in amps? I2 =
Stephen Z.
Consider the circuit in the figure. The currents $I_{1}, I_{2},$ and $I_{3},$ in amperes, are given by the solution of the system of linear equations $\left\{\begin{aligned} 2 I_{1} &+4 I_{3}=E_{1} \\ I_{2}+4 I_{3} &=E_{2} \\ I_{1}+I_{2}-I_{3} &=0 \end{aligned}\right.$ where $E_{1}$ and $E_{2}$ are voltages. Use the inverse of the coefficient matrix of this system to find the unknown currents for the given voltages. $E_{1}=15$ volts, $E_{2}=17$ volts
Linear Systems and Matrices
The Inverse of a Square Matrix
In Exercises $65-68$ , consider the circuit shown in the figure. The currents $I_{1}, I_{2},$ and $I_{3}$ , in amperes, are the solution of the system of linear equations. $$\left\{\begin{aligned} 2 I_{1} &+4 I_{3}=E_{1} \\ I_{2}+4 I_{3} &=E_{2} \\ I_{1}+I_{2}-I_{3} &=0 \end{aligned}\right.$$ where $E_{1}$ and $E_{2}$ are voltages. Use the inverse of the coefficient matrix of this system to find the unknown currents for the given voltages. $$\begin{aligned} E_{1} &=15 \text { volts } \\ E_{2} &=17 \text { volts } \end{aligned}$$
