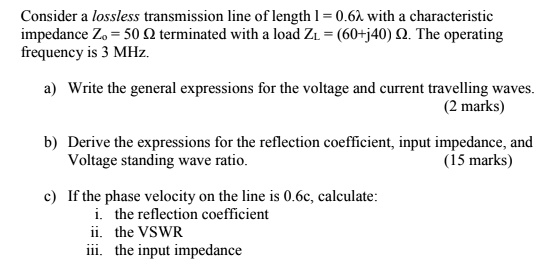

Consider a lossless transmission line of length l = 0.6? with a characteristic impedance Zo = 50 ? terminated with a load ZL = (60+j40) ?. The operating frequency is 3 MHz. a) Write the general expressions for the voltage and current travelling waves. b) Derive the expressions for the reflection coefficient, input impedance, and Voltage standing wave ratio. c) If the phase velocity on the line is 0.6c, calculate: i. the reflection coefficient ii. the VSWR iii. the input impedance
Added by Bego-A A.
Close
Step 1
General expressions for voltage and current traveling waves: The general expressions for the voltage and current traveling waves on a transmission line can be written as: V(z) = V+ * e^(-jβz) + V- * e^(jβz) I(z) = (1/Zo) * (V+ * e^(-jβz) - V- * e^(jβz)) where Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A lossless transmission line with Z0 = 50 Ω is 30 m long and operates at 2 MHz. The line is terminated with a load ZL = (60 + j 40) Ω. If the velocity of wave on the line is 0.6*C. Find: (i) Reflection coefficient (ii) Standing wave ratio (iii) Input impedance. Solve using analytical approach. (without smith chart) Assume suitable data if necessary.
Sri K.
a. A 30m long lossless transmission line with Zo = 50 operating at 2 MHz is terminated with a load ZL = 60 + j40. If v = 0.6C on the line. C represents the velocity of light. Find: i. The reflection coefficient r ii. The standing wave ratio iii. The input impedance
Adi S.
At a frequency of 4 MHz, a parallel wire transmission line has the following parameters: R = 0.025 Ω/m, L = 2 µH/m, G = 0, C = 5.56 pF/m. The line is 100 meters long, terminated in a resistance of 300 Ω. Find the characteristic impedance, standing wave ratio, and voltage reflection coefficient of the load.
Prem B.
