Question

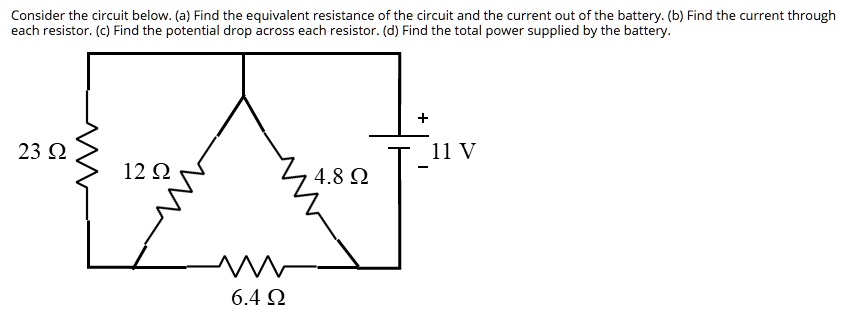

Consider the circuit below. (a) Find the equivalent resistance of the circuit and the current out of the battery. (b) Find the current through each resistor. (c) Find the potential drop across each resistor. (d) Find the total power supplied by the battery. 23 ? 12 ? 4.8 ? 6.4 ? 11 V

          Consider the circuit below. (a) Find the equivalent resistance of the circuit and the current out of the battery. (b) Find the current through each resistor. (c) Find the potential drop across each resistor. (d) Find the total power supplied by the battery.
23 ?
12 ?
4.8 ?
6.4 ?
11 V

Consider the circuit below. (a) Find the equivalent resistance of the circuit and the current out of the battery. (b) Find the current through each resistor. (c) Find the potential drop across each resistor. (d) Find the total power supplied by the battery.
23 ?
12 ?
4.8 ?
6.4 ?
11 V
