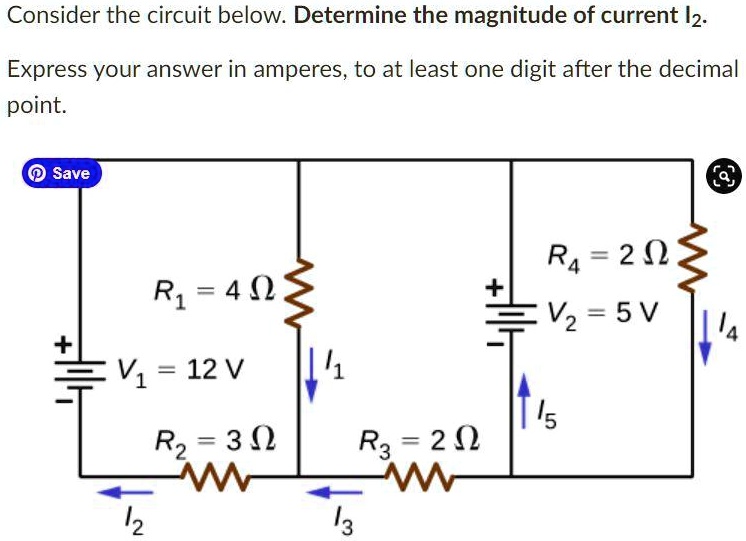

Consider the circuit below. Determine the magnitude of current I2. Express your answer in amperes, to at least one digit after the decimal point. R1 = 4 ? V1 = 12 V R2 = 3 ? R3 = 2 ? R4 = 2 ? V2 = 5 V Currents: I1 (down through R1), I2 (left through R2), I3 (left through R3), I4 (down through R4), I5 (up through V2)
Added by Jessica R.
Close
Step 1
First, we need to find the total resistance in the circuit. We can see that R2 and R3 are in series, so their combined resistance is R2 + R3 = 3Ω + 2Ω = 5Ω. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the current through R1 (in Amperes) for the circuit in the figure given that: R1 = 2 Ω, R2 = 6 Ω, R3 = 14 Ω and V = 23 V. Your answer should be a number with two decimal places, do not include the unit.
Narayan H.
Consider the circuit shown in the figure. Take R1=2R , R2=R and R3=R , find the magnitude of the current passing through the resistor R2 in terms on V/R . Express your answer using one decimal place.
Anand J.
Consider the electric circuit shown in the figure: Assume that V = 20.6 V, R1 = R2 = R3 = R4 = R5 = 3.00 ̐. What is the equivalent resistance of the circuit? What is the electric current flowing through resistor R2
Sikandar B.
