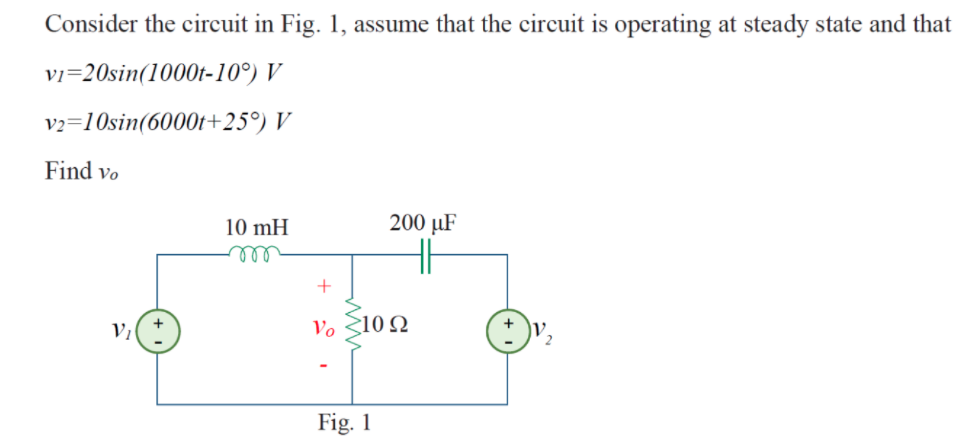

Consider the circuit in Fig. 1, assume that the circuit is operating at steady state and that v1=20sin(1000t-10°) V v2=10sin(6000t+25°) V Find vo
Added by Anil K.
Close
Step 1
The phasor form of \( v_{l} \) is \( V_{l} = 20 \angle -10^{\circ} \) V and the phasor form of \( v_{2} \) is \( V_{2} = 10 \angle 25^{\circ} \) V. Show more…
Show all steps
