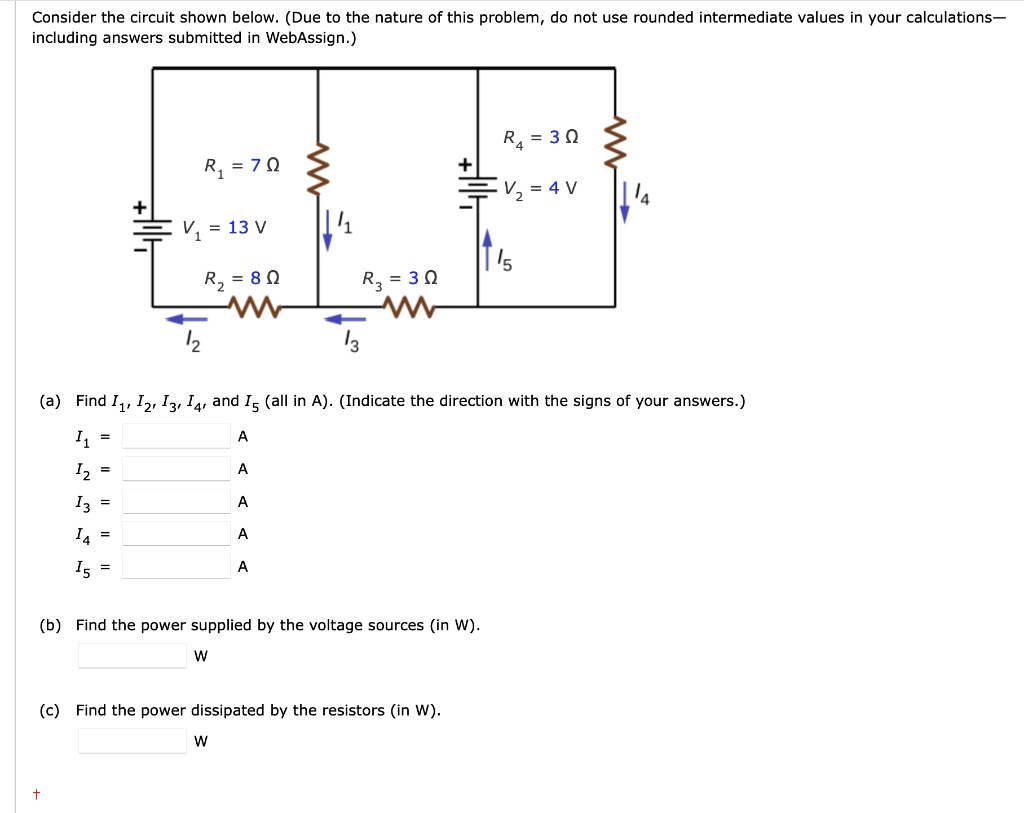

Consider the circuit shown below. (Due to the nature of this problem, do not use rounded intermediate values in your calculations—including answers submitted in WebAssign.) R_1 = 7 ? V_1 = 13 V R_2 = 8 ? R_3 = 3 ? R_4 = 3 ? V_2 = 4 V (a) Find I_1, I_2, I_3, I_4, and I_5 (all in A). (Indicate the direction with the signs of your answers.) I_1 = A I_2 = A I_3 = A I_4 = A I_5 = A (b) Find the power supplied by the voltage sources (in W). W (c) Find the power dissipated by the resistors (in W). W

          Consider the circuit shown below. (Due to the nature of this problem, do not use rounded intermediate values in your calculations—including answers submitted in WebAssign.)

R_1 = 7 ?
V_1 = 13 V
R_2 = 8 ?
R_3 = 3 ?
R_4 = 3 ?
V_2 = 4 V

(a) Find I_1, I_2, I_3, I_4, and I_5 (all in A). (Indicate the direction with the signs of your answers.)
I_1 = A
I_2 = A
I_3 = A
I_4 = A
I_5 = A

(b) Find the power supplied by the voltage sources (in W).
W

(c) Find the power dissipated by the resistors (in W).
W

Show more…

Consider the circuit shown below. (Due to the nature of this problem, do not use rounded intermediate values in your calculations—including answers submitted in WebAssign.)

R1 = 7 ?
V1 = 13 V
R2 = 8 ?
R3 = 3 ?
R4 = 3 ?
V2 = 4 V

(a) Find I1, I2, I3, I4, and I5 (all in A). (Indicate the direction with the signs of your answers.)
I1 = A
I2 = A
I3 = A
I4 = A
I5 = A

(b) Find the power supplied by the voltage sources (in W).
W

(c) Find the power dissipated by the resistors (in W).
W

Added by Eduardo R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

10/31/2023

Step 1

We can use Kirchhoff's current law (KCL) and Kirchhoff's voltage law (KVL) to set up the equations for the currents. (a) Applying KCL at the top node (where I1, I2, and I3 meet): I1 = I2 + I3 Applying KVL in the left loop (with I1, R1, and Vz): Vi - I1*R1 - Vz = Show more…
