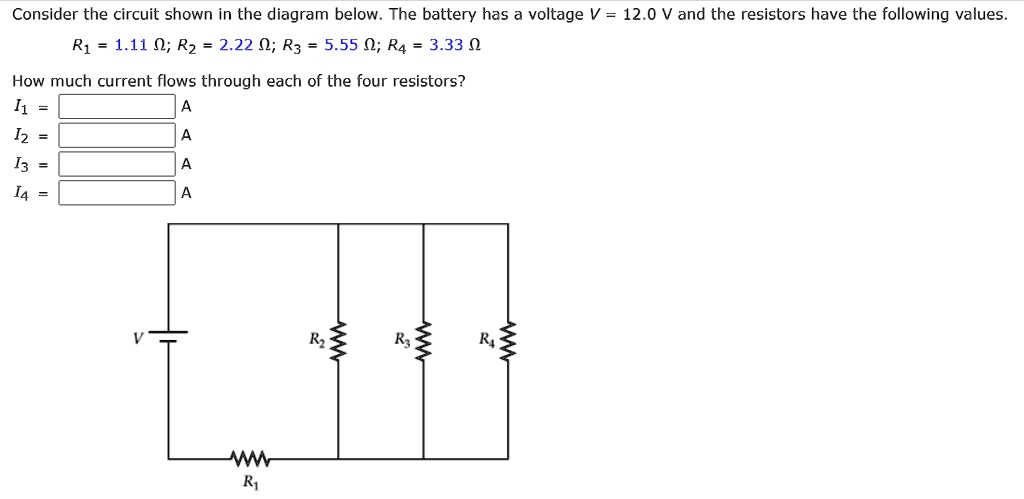

Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values. R1 = 1.11 ?; R2 = 2.22 ?; R3 = 5.55 ?; R4 = 3.33 ? How much current flows through each of the four resistors? I1 = A I2 = A I3 = A I4 = A

          Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values.
R1 = 1.11 ?; R2 = 2.22 ?; R3 = 5.55 ?; R4 = 3.33 ?
How much current flows through each of the four resistors?
I1 = A
I2 = A
I3 = A
I4 = A

Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values.
R1 = 1.11 ?; R2 = 2.22 ?; R3 = 5.55 ?; R4 = 3.33 ?
How much current flows through each of the four resistors?
I1 = A
I2 = A
I3 = A
I4 = A

Added by James T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Suman K

05/27/2022

Step 1

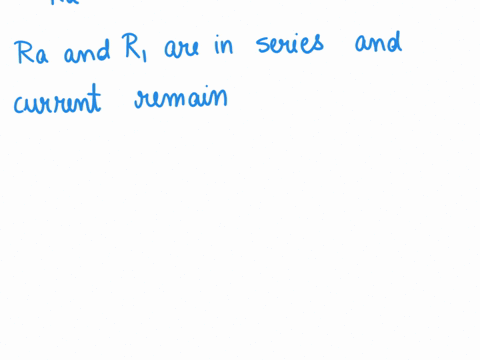

11 Ω, R2 = 2.22 Ω, R3 = 5.55 Ω, R4 = 3.33 Ω Calculate the total equivalent resistance using the formula for resistors in parallel: \[ R_{P} = \frac{1}{\frac{1}{R2} + \frac{1}{R3} + \frac{1}{R4}} \] \[ R_{P} = \frac{1}{\frac{1}{2.22} + \frac{1}{5.55} + Show more…
