Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the re

Question

Emily Anderson · Accepted Answer

First, we need to find the equivalent resistance of the circuit. Since R2 and R3 are in parallel

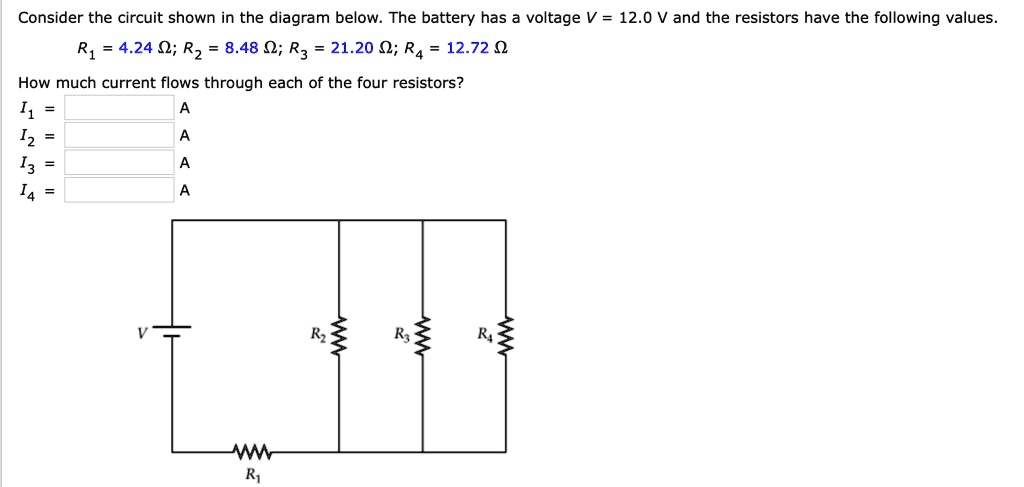

Consider the circuit shown in the diagram below. The battery has a voltage V = 12.0 V and the resistors have the following values. R1 = 4.24 ?; R2 = 8.48 ?; R3 = 21.20 ?; R4 = 12.72 ? How much current flows through each of the four resistors? I1 = A I2 = A I3 = A I4 = A
