Question

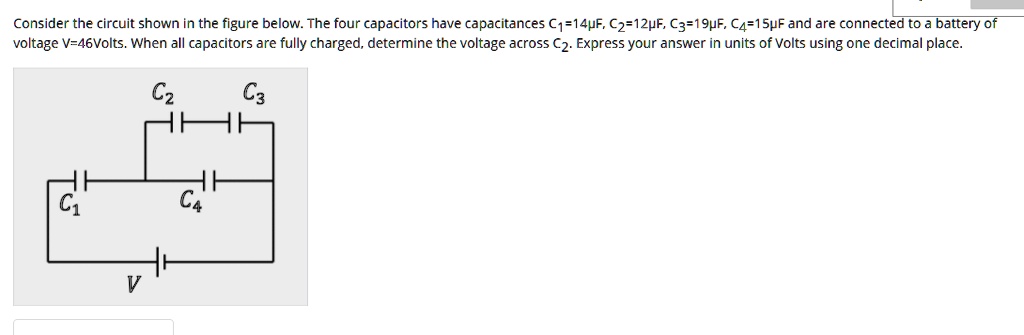

Consider the circuit shown in the figure below. The four capacitors have capacitances C1=14?F, C2=12?F, C3=19?F, C4=15?F and are connected to a battery of voltage V=46Volts. When all capacitors are fully charged, determine the voltage across C2. Express your answer in units of Volts using one decimal place.

Name: Consider the circuit shown in the figure below. The four capacitors have capacitances C1=14?F, C2=12?F, C3=19?F, C4=15?F and are connected to a battery of voltage V=46Volts. When all capacitors are fully charged, determine the voltage across C2. Express your answer in units of Volts using one decimal place.
Uploaded: 2023-05-08T12:05:33-08:00
Duration: 4 min 22 s
Channel: Ivan Kochetkov
Description: Consider the circuit shown in the figure below. The four capacitors have capacitances C1=14?F, C2=12?F, C3=19?F, C4=15?F and are connected to a battery of voltage V=46Volts. When all capacitors are fully charged, determine the voltage across C2. Express your answer in units of Volts using one decimal place.

          Consider the circuit shown in the figure below. The four capacitors have capacitances C1=14?F, C2=12?F, C3=19?F, C4=15?F and are connected to a battery of voltage V=46Volts. When all capacitors are fully charged, determine the voltage across C2. Express your answer in units of Volts using one decimal place.

Consider the circuit shown in the figure below. The four capacitors have capacitances C1=14?F, C2=12?F, C3=19?F, C4=15?F and are connected to a battery of voltage V=46Volts. When all capacitors are fully charged, determine the voltage across C2. Express your answer in units of Volts using one decimal place.

Added by Lidia L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Ivan Kochetkov

05/08/2023

Step 1

Given: C2 = 14 µF C3 = 19 µF Using the formula for capacitors in series: C23 = (C2 * C3) / (C2 + C3) C23 = (14 * 19) / (14 + 19) C23 = 266 / 33 C23 ≈ 8.06 µF Show more…

Show all steps

Thanks for your feedback!

Consider the circuit shown in the figure below. The four capacitors have capacitances C1=14μF, C2=12μF, C3=19μF, C4=15μF and are connected to a battery of voltage V=46Volts. When all capacitors are fully charged, determine the voltage across C2. Express your answer in units of Volts using one decimal place.
