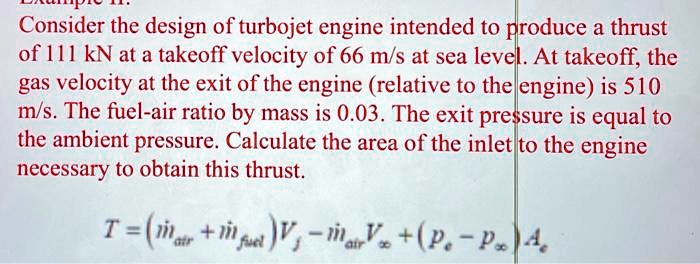

Consider the design of turbojet engine intended to produce a thrust of 111 kN at a takeoff velocity of 66 m/s at sea level. At takeoff, the gas velocity at the exit of the engine (relative to the engine) is 510 m/s. The fuel-air ratio by mass is 0.03. The exit pressure is equal to the ambient pressure. Calculate the area of the inlet to the engine necessary to obtain this thrust. $T = (dot{m}_{air} + dot{m}_{fuel}) V_j - dot{m}_{air} V_{infty} + (p_e - p_{infty}) A_e$
Added by Jordi J.
Close
Step 1
First, we need to find the mass flow rate (m_dot) of the air through the engine. We can use the thrust equation: Thrust = m_dot * (V_exit - V_ambient) + (P_exit - P_ambient) * A_exit where Thrust = 11,000 N (given) V_exit = 510 m/s (given) V_ambient = 66 m/s Show moreā¦
Show all steps
Your feedback will help us improve your experience
Madhur L and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

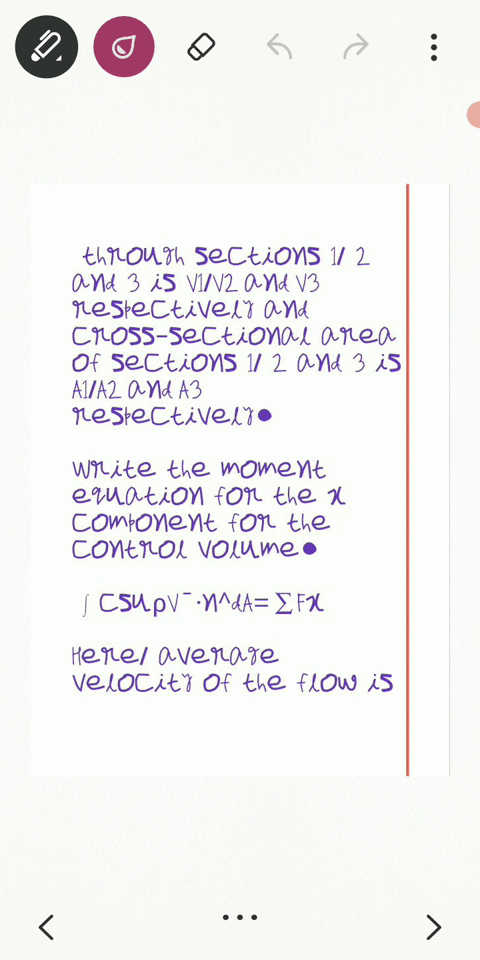

(See The Wide World of Fluids article titled "Where the Plume goes," Section $5.2 .2 . .$ A flows into the jet engine shown in Fig. $P 5.74$ at a rate of 9 slugs/s and a speed of 300 fus. Upon Landing, the engine exhaust exits through the reverse thrust mechanism with a speed of $900 \mathrm{ft} / \mathrm{s}$ in the direction indicated. Determine the reverse thrust applied by the engine to the airplane. Assume the inlet and exit pressures are atmospheric and that the mass flowrate of fucl is negligible compared to the air flowrate through the engine.

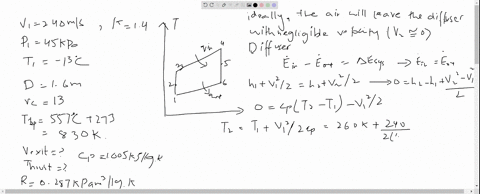

A pure jet engine propels an aircraft at $240 \mathrm{~m} / \mathrm{s}$ through air at $45 \mathrm{kPa}$ and $-13^{\circ} \mathrm{C}$. The inlet diameter of this engine is $1.6 \mathrm{~m},$ the compressor pressure ratio is $13,$ and the temperature at the turbine inlet is $557^{\circ} \mathrm{C}$. Determine the velocity at the exit of this engine's nozzle and the thrust produced. Assume ideal operation for all components and constant specific heats at room temperature.
A pure jet engine propels an aircraft at $240 \mathrm{m} / \mathrm{s}$ through air at $45 \mathrm{kPa}$ and $-13^{\circ} \mathrm{C}$. The inlet diameter of this engine is $1.6 \mathrm{m},$ the compressor pressure ratio is $13,$ and the temperature at the turbine inlet is $557^{\circ} \mathrm{C}$. Determine the velocity at the exit of this engine's nozzle and the thrust produced. Assume ideal operation for all components and constant specific heats at room temperature.
