Question

Consider the juncion of three wires as shown in the diagram. (Figure 1) The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows. Wire Current density (A/mm²) Diameter (mm) 1 2.9 2.0 2 4.8 2.6 Part A Find the current I? in wire 3. Express your answer in amperes to two significant figures. Call current out of the junction positive and current into the junction negative. I? = A

          Consider the juncion of three wires as shown in the diagram. (Figure 1)

The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows.
Wire   Current density (A/mm²)   Diameter (mm)
1      2.9                      2.0
2      4.8                      2.6

Part A
Find the current I? in wire 3.
Express your answer in amperes to two significant figures. Call current out of the junction positive and current into the junction negative.
I? = A

Consider the juncion of three wires as shown in the diagram. (Figure 1)

The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows.
Wire Current density (A/mm²) Diameter (mm)
1 2.9 2.0
2 4.8 2.6

Part A
Find the current I? in wire 3.
Express your answer in amperes to two significant figures. Call current out of the junction positive and current into the junction negative.
I? = A

Added by Leah R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sufiyan Alam

03/21/2022

Step 1

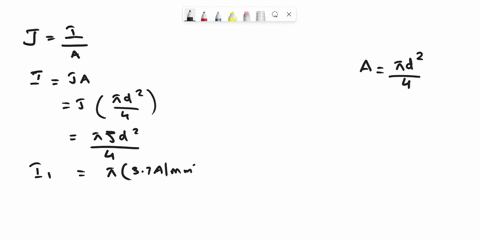

The cross-sectional area A of a wire with diameter d is given by the formula A = π(d/2)². So, for wire 2, A = π(4.8/2)² = 18.10 mm². The current I in a wire is given by the product of the current density J and the cross-sectional area A. So, for wire 2, I = JA Show more…

Show all steps

Thanks for your feedback!

Consider the junction of three wires as shown in the diagram (Figure 1). The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table: Wire Current density (A/mm²) Diameter (mm) 1 2.9 2.0 2 4.8 2.6 Part A Find the current I₃ in wire 3. Express your answer in amperes to two significant figures. Call current out of the junction positive and current into the junction negative.
