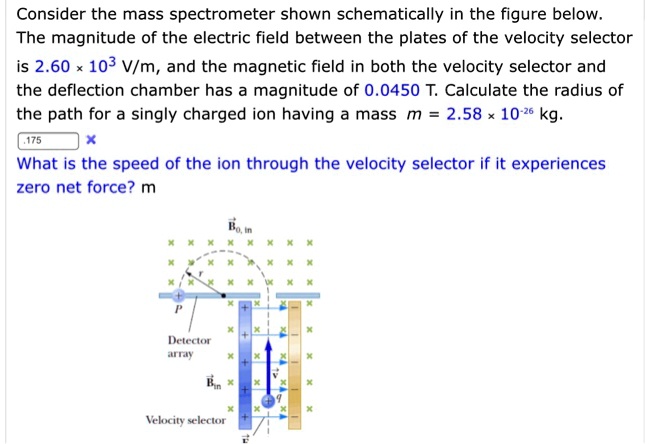

Consider the mass spectrometer shown schematically in the figure below. The magnitude of the electric field between the plates of the velocity selector is 2.60 ! 103 V/m, and the magnetic field in both the velocity selector and the deflection chamber has a magnitude of 0.0450 T. Calculate the radius of the path for a singly charged ion having a mass m = 2.58 ! 10?²? kg. What is the speed of the ion through the velocity selector if it experiences zero net force?
Added by Manuela M.
Close
Step 1
58 \times 10^{-26} \) kg is the mass of the ion - \( v \) is the speed of the ion - \( q = 1.6 \times 10^{-19} \) C is the charge of the ion - \( B = 0.0450 \) T is the magnetic field strength Show more…
Show all steps
Your feedback will help us improve your experience
Ivan Kochetkov and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the mass spectrometer shown schematically in Figure $29.23$. The electric field between the plates of the velocity selector is $2500 \mathrm{~V} / \mathrm{m}$, and the magnetic field in both the velocity selector and the deflection chamber has a magnitude of $0.0350 \mathrm{~T}$. Calculate the radius of the path for a singly charged ion having a mass $m=2.18 \times 10^{-26} \mathrm{~kg}$
Consider the mass spectrometer shown schematically in Figure 29.24 . The magnitude of the electric field between the plates of the velocity selector is $2500 \mathrm{V} / \mathrm{m},$ and the magnetic field in both the velocity selector and the deflection chamber has a magnitude of 0.0350 $\mathrm{T}$ Calculate the radius of the path for a singly charged ion having a mass $m=2.18 \times 10^{-26} \mathrm{kg}$ .
Consider the mass spectrometer shown schematically in Active Figure 29.13 . The magnitude of the electric field between the plates of the velocity selector is $2500 \mathrm{V} / \mathrm{m},$ and the magnetic field in both the velocity selector and the deflection chamber has a magnitude of 0.0350 T. Calculate the radius of the path for a singly charged ion having a mass $m=2.18 \times 10^{-26} \mathrm{kg} .$
