Consider the roof edge pattern: Consider the roof edge pattern: what happen to the edge if it filtered with a low-pass filter \begin{tabular}{|l|l|l|} \hline \( 1 / 9 \) & \( 1 / 9 \) & \( 1 / 9 \) \\ \hline \( 1 / 9 \) & \( 1 / 9 \) & \( 1 / 9 \) \\ \hline \( 1 / 9 \) & \( 1 / 9 \) & \( 1 / 9 \) \\ \hline \end{tabular} \begin{tabular}{|l|l|l|l|l|l|l|l|l|l|} \hline 30 & 30 & 30 & 120 & 120 & 120 & 120 & 60 & 60 & 60 \\ \hline 30 & 30 & 30 & 120 & 120 & 120 & 120 & 60 & 60 & 60 \\ \hline 30 & 30 & 30 & 120 & 120 & 120 & 120 & 60 & 60 & 60 \\ \hline 30 & 30 & 30 & 120 & 120 & 120 & 120 & 60 & 60 & 60 \\ \hline 30 & 30 & 30 & 120 & 120 & 120 & 120 & 60 & 60 & 60 \\ \hline \end{tabular} \begin{tabular}{|l|l|l|l|l|l|l|l|l|l|} \hline 30 & 30 & 60 & 90 & 120 & 120 & 100 & 80 & 60 & 60 \\ \hline 30 & 30 & 60 & 90 & 120 & 120 & 100 & 80 & 60 & 60 \\ \hline 30 & 30 & 60 & 90 & 120 & 120 & 100 & 80 & 60 & 60 \\ \hline 30 & 30 & 60 & 90 & 120 & 120 & 100 & 80 & 60 & 60 \\ \hline 30 & 30 & 60 & 90 & 120 & 120 & 100 & 80 & 60 & 60 \\ \hline \end{tabular}
Added by Anthony J.
Close
Step 1
The filter is a 3x3 matrix where each element is \( \frac{1}{9} \). This is an averaging filter that will smooth the image by averaging the values of each 3x3 neighborhood. Show more…
Show all steps
Your feedback will help us improve your experience
Ajay Singhal and 84 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Returning to Fig. 13.37 , what kind of spatial filter would produce each of the patterns shown in Fig. P.13.43?

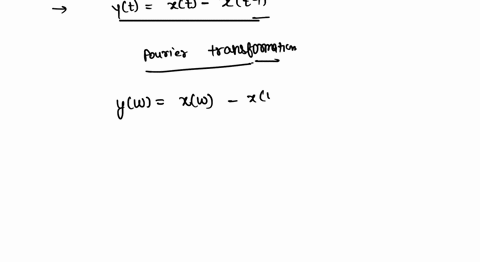

y(t) = x(t) - x(t-1). The frequency response of the filter with the input-output relationship amplitude spectrum, |H(jw)|, needs to be found and roughly drawn. What kind of filter is this (Lowpass, Band-pass, High-pass)? Why is that?
