Question

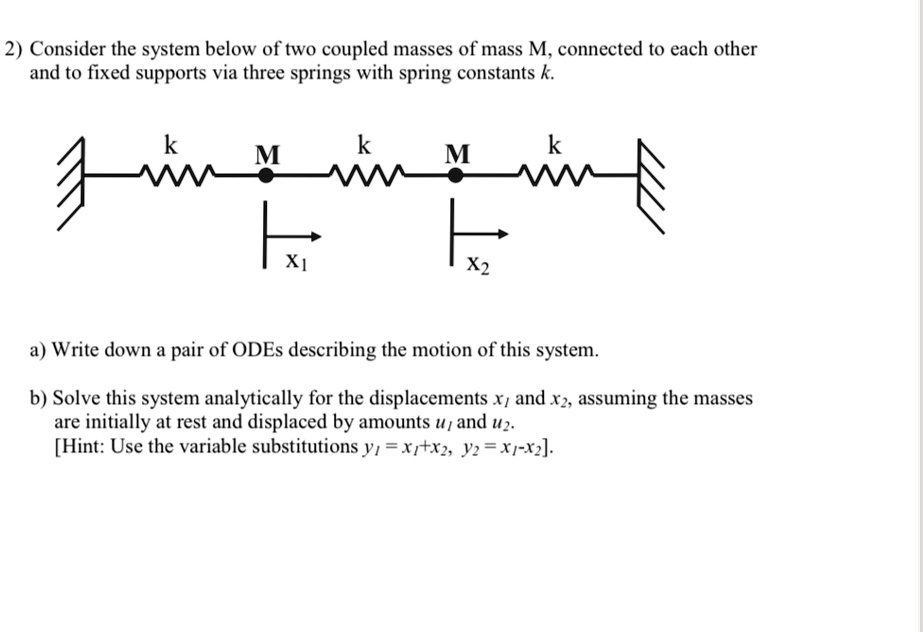

2) Consider the system below of two coupled masses of mass M, connected to each other and to fixed supports via three springs with spring constants k. k k k M M X1 X2 a) Write down a pair of ODEs describing the motion of this system. b) Solve this system analytically for the displacements x1 and x2, assuming the masses are initially at rest and displaced by amounts u? and u2. [Hint: Use the variable substitutions y? = x1+x2, y2=x1-x2].

          2) Consider the system below of two coupled masses of mass M, connected to each other and to fixed supports via three springs with spring constants k.
k
k
k
M
M
X1
X2
a) Write down a pair of ODEs describing the motion of this system.
b) Solve this system analytically for the displacements x1 and x2, assuming the masses are initially at rest and displaced by amounts u? and u2.
[Hint: Use the variable substitutions y? = x1+x2, y2=x1-x2].

2) Consider the system below of two coupled masses of mass M, connected to each other and to fixed supports via three springs with spring constants k.
k
k
k
M
M
X1
X2
a) Write down a pair of ODEs describing the motion of this system.
b) Solve this system analytically for the displacements x1 and x2, assuming the masses are initially at rest and displaced by amounts u? and u2.
[Hint: Use the variable substitutions y? = x1+x2, y2=x1-x2].

Added by Enrique W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

11/13/2022

Step 1

For mass 1: \(M\ddot{x}_1 = -kx_1 + k(x_2 - x_1)\) For mass 2: \(M\ddot{x}_2 = -kx_2 + k(x_1 - x_2)\) Show more…

Show all steps

Thanks for your feedback!

Consider the system below of two coupled masses of mass M, connected to each other and to fixed supports via three springs with spring constants k. a) Write down a pair of ODEs describing the motion of this system. b) Solve this system analytically for the displacements x_(1) and x_(2), assuming the masses are initially at rest and displaced by amounts u_(1) and u_(2). [Hint: Use the variable substitutions y_(1)=x_(1)+x_(2),y_(2)=x_(1)-x_(2) ]. 2 Consider the system below of two coupled masses of mass M.connected to each other and to fixed supports via three springs with spring constants k k VVV k M k VVM M X a) Write down a pair of ODEs describing the motion of this system b Solve this system analytically for the displacements x and x, assuming the masses are initially at rest and displaced by amounts u and u2 [Hint: Use the variable substitutions y=x+x2, y=x-x]
