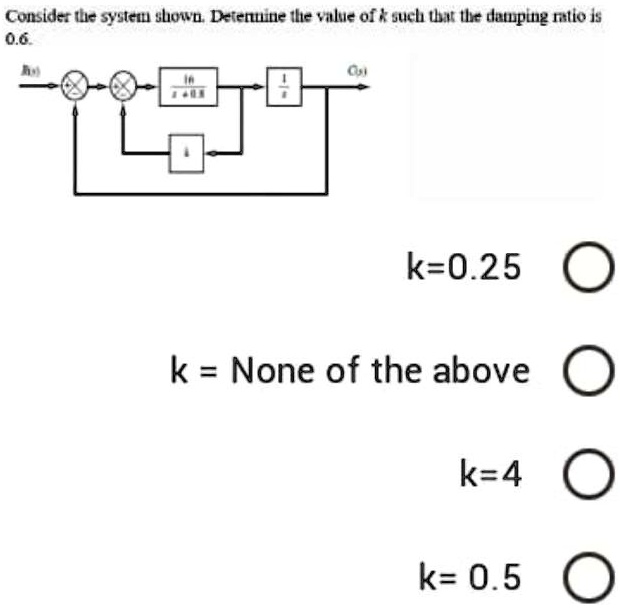

Consider the system shown. Determine the value of k such that the damping ratio is 0.6. k=0.25 k = None of the above k=4 k= 0.5
Added by Jose Angel R.
Close
Step 1
The natural frequency of the system is f_n=2.5*pi*(k-0.25). Show more…
Show all steps
Your feedback will help us improve your experience
Aarya B and 71 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
A damped system has the following parameters: $m=2 \mathrm{~kg}, c=3 \mathrm{~N}-\mathrm{s} / \mathrm{m},$ and $k=40 \mathrm{~N} / \mathrm{m} .$ Determine the natural frequency, damping ratio, and the type of response of the system in free vibration. Find the amount of damping to be added or subtracted to make the system critically damped.
3. The block diagram of the control system is shown as figure. (45%) (1) Find the transfer function G(s) = Y(s)/R(s). (2) Find the value of K ( K > 0 ) such that the damping ratio of the system Ζ is 0.7. (3) Find the Peak time Tp, Percent overshoot %OS, Settling time Ts, Rise time Tr, and Time constant τ from the result of (2).
