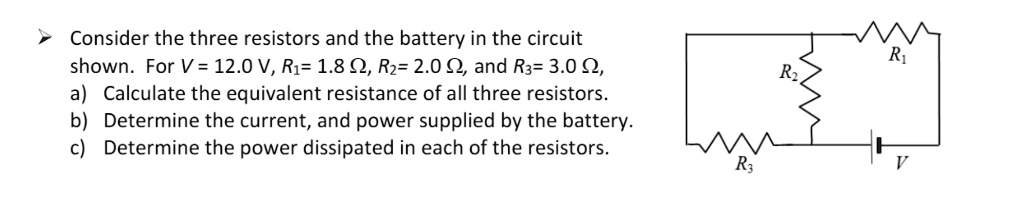

Consider the three resistors and the battery in the circuit shown. For V = 12.0 V, R1= 1.8 ?, R2= 2.0 ?, and R3= 3.0 ?, a) Calculate the equivalent resistance of all three resistors. b) Determine the current, and power supplied by the battery. c) Determine the power dissipated in each of the resistors.
Added by Kari G.
Close
Step 1
8 Ω, R2 = 2.0 Ω, R3 = 3.0 Ω Equivalent resistance (Req) = R2 * R3 / (R2 + R3) Req = 2.0 * 3.0 / (2.0 + 3.0) Req = 6.0 / 5.0 Req = 1.2 Ω Show more…
Show all steps
