Consider this series circuit with the given values of resistance and source voltage E: Find the total circuit current: \( /= \) \( \square \) amps Find the voltage across \( \mathrm{R}_{1}: V_{1}= \) \( \square \) volts Find the voltage across \( \mathrm{R}_{2} \) : \( \square \) volts Find the voltage across \( \mathrm{R}_{3} \) : \( \square \) volts Find the total voltage: \( \square \) volts
Added by Condy
Close
Step 1
The total resistance \( R_{\text{total}} \) is the sum of all resistances: \[ R_{\text{total}} = R_1 + R_2 + R_3 = 6 \, \Omega + 8 \, \Omega + 10 \, \Omega = 24 \, \Omega \] Show more…
Show all steps
Your feedback will help us improve your experience
Bradley Duda and 74 other Algebra 2 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
As shown in the figure, a circuit consists of an emf source with $V=20.0 \mathrm{~V}$ and six resistors. Resistors $R_{1}=5.00 \Omega$ and $R_{2}=10.00 \Omega$ are connected in series. Resistors $R_{3}=5.00 \Omega$ and $R_{4}=5.00 \Omega$ are connected in parallel and are in series with $R_{1}$ and $R_{2}$. Resistors $R_{3}=2.00 \Omega$ and $R_{6}=2.00 \Omega$ are connected in parallel and are also in series with $R_{1}$ and $R_{2}$ a) What is the potential drop across each resistor? b) How much current flows through each resistor?

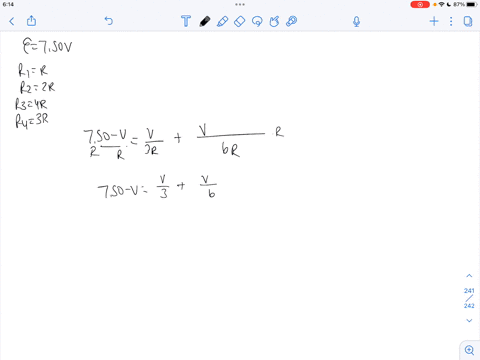

Four resistors are connected to a battery as shown in the figure. The current through the battery is I, the battery's electromotive force (emf) is ε = 7.50 V, and the resistor values are R1 = R, R2 = 2R, R3 = 4R, and R4 = 3R. Find the voltages across each resistor.
Penny R.

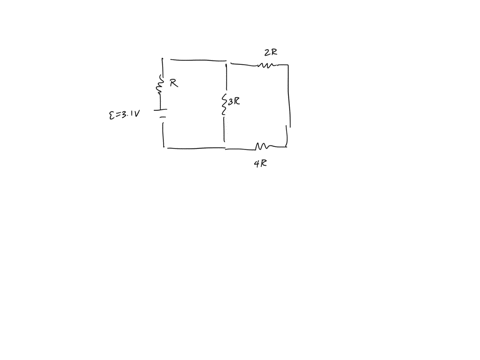

Four resistors are connected to a battery as shown in the figure. The current through the battery is I, the battery's electromotive force (emf) is ℰ = 3.10 V, and the resistor values are R1 = R, R2 = 2R, R3 = 4R, and R4 = 3R. Find the voltages across each resistor.
Timothy J.
