00:02
All right.
00:09
So one can quickly take any fissure projection and convert it.
00:28
So if we have, say, x, let's do a, b, c, d going clockwise like so.
00:41
And convert it into a bond line drawing by simply leaving the a and d in the plane like so.
00:51
And then making a wedge to c and a dash to b.
00:56
So to me, that's the quickest sort of transformation that you can do of official projection to bond line.
01:04
A and d remain in place, c becomes a wedge, and b becomes a dash, where it's into the page.
01:12

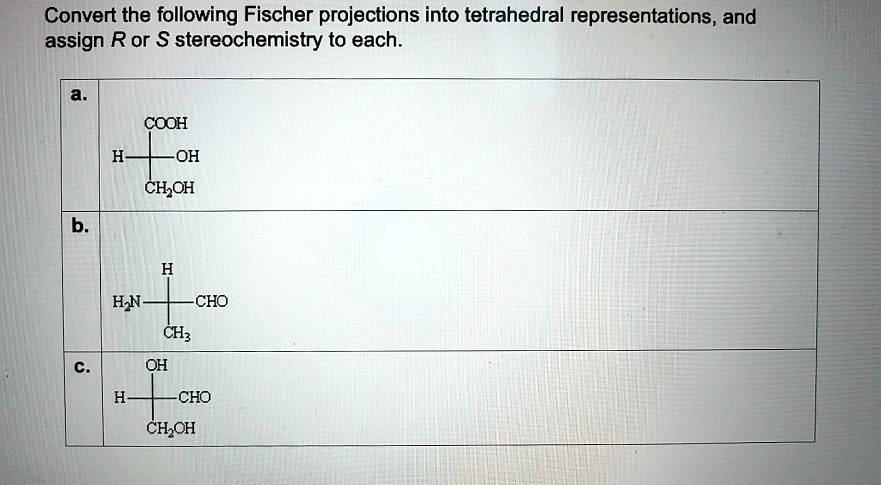

So to begin with, we have a fisher projection shown here.
01:36
The quickest conversion then is that cooh and this hydrogen will remain in the plane.
01:52
We'll get a wedge to the alcohol and a dash there.
02:00

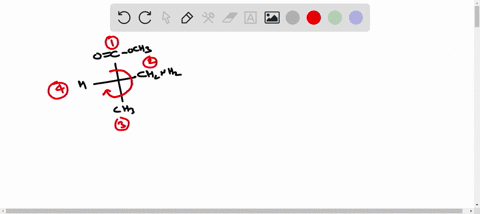

Then if we want to assign stereochemistry, we simply got to assign priority to these various groups, which would be one, two, and three.
02:09
Then we decide whether connecting them would happen to quadwise or counterpile...
