Convolution: Exercise #1 • Find the convolution of the two signals $x_1(t) = 2u(t) - 2u(t - 1)$ $x_2(t) = u(t - 1) - u(t - 3)$
Added by James M.
Close
Step 1
Step 1: The convolution of two signals $x_1(t)$ and $x_2(t)$ is defined as: $y(t) = x_1(t) * x_2(t) = \int_{-\infty}^{\infty} x_1(\tau)x_2(t - \tau) d\tau$ In this case, we have: $x_1(t) = 2u(t) - 2u(t - 1)$ $x_2(t) = u(t - 1) - u(t - 3)$ Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 91 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the convolution of the signals: x1(t) = e^(-at)u(t) ; x2(t) = e^(-bt)u(t) Use Fourier Transform.
Adi S.
Consider a continuous-time linear time-invariant (CLTI) system with the input signal x(t) and the impulse response h(t). Use the convolution integral and the analytical method to find the system's output y(t). (a) x(t) = 2tu(t) - 2, h(t) = u(t - 4) (b) x(t) = r(t), h(t) = rect((t - 4)/6) Answers: (a) y(t) = e^(-2t+8) * e^(-4j*u(t - 6)) (b) y(t) = (t - 1)u(t - 1) - (1/2)(t - 7)^2u(t - 7)
Sri K.

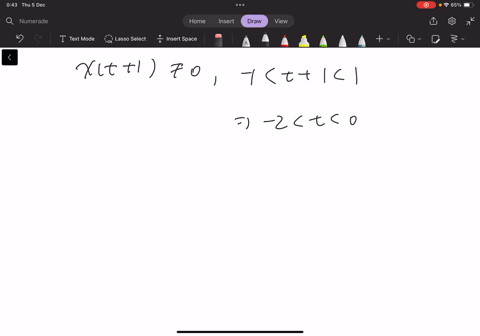

Determine and sketch the convolution of the following two signals: x(t) = 1 - t for -1 < t < 1 elsewhere, x(t) = 0 h(t) = δ(t + 1) + 2δ(t + 2)
Shu N.
