Question

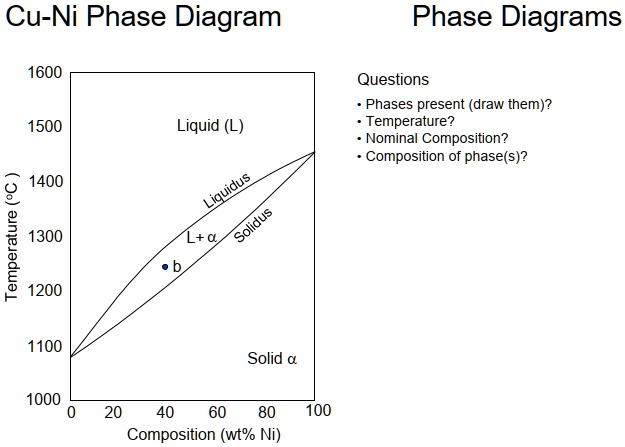

Cu-Ni Phase Diagram Phase Diagrams 1600 1500 Liquid (L) 1400 Liquidus 1300 L+$$\alpha$$ Solidus b 1200 Solid $$\alpha$$ 1100 1000 0 20 40 60 80 100 Temperature ($$^{\circ}$$C) Composition (wt% Ni) Questions • Phases present (draw them)? • Temperature? • Nominal Composition? • Composition of phase(s)?

Name: cu ni phase diagram phase diagrams 1600 1500 liquid l 1400 liquidus 1300 lalpha solidus b 1200 solid alpha 1100 1000 0 20 40 60 80 100 temperature circc composition wt ni questions phases pr 83104
Uploaded: 2022-12-05T04:29:56-08:00
Duration: 2 min 9 s
Channel: Adi S
Description: cu ni phase diagram phase diagrams 1600 1500 liquid l 1400 liquidus 1300 lalpha solidus b 1200 solid alpha 1100 1000 0 20 40 60 80 100 temperature circc composition wt ni questions phases pr 83104

          Cu-Ni Phase Diagram
Phase Diagrams
1600
1500
Liquid (L)
1400
Liquidus
1300
L+$$\alpha$$
Solidus
b
1200
Solid $$\alpha$$
1100
1000
0
20
40
60
80
100
Temperature ($$^{\circ}$$C)
Composition (wt% Ni)
Questions
• Phases present (draw them)?
• Temperature?
• Nominal Composition?
• Composition of phase(s)?

cu ni phase diagram phase diagrams 1600 1500 liquid l 1400 liquidus 1300 lalpha solidus b 1200 solid alpha 1100 1000 0 20 40 60 80 100 temperature circc composition wt ni questions phases pr 83104

Added by Jasmine J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

12/05/2022

Step 1

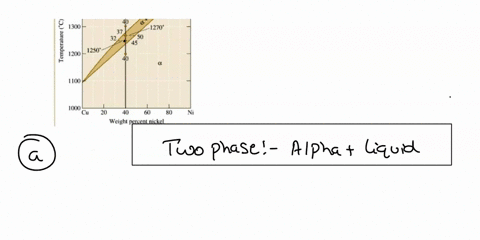

First, locate point 'b' on the phase diagram. Point 'b' is located within the L+$$\alpha$$ region. Show more…

Show all steps

Thanks for your feedback!

Cu-Ni Phase Diagram Phase Diagrams 1600 1500 Liquid (L) 1400 Liquidus 1300 L+$$\alpha$$ Solidus b 1200 Solid $$\alpha$$ 1100 1000 0 20 40 60 80 100 Temperature ($$^{\circ}$$C) Composition (wt% Ni) Questions • Phases present (draw them)? • Temperature? • Nominal Composition? • Composition of phase(s)?
