Question

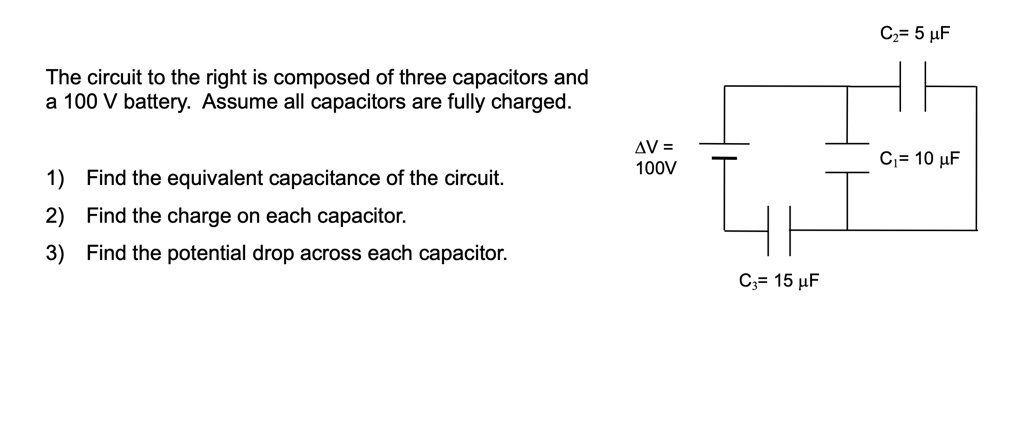

The circuit to the right is composed of three capacitors and a 100 V battery. Assume all capacitors are fully charged. 1) Find the equivalent capacitance of the circuit. 2) Find the charge on each capacitor. 3) Find the potential drop across each capacitor. C2= 5 ?F ?V = 100V C1= 10 ?F C3= 15 ?F

          The circuit to the right is composed of three capacitors and
a 100 V battery. Assume all capacitors are fully charged.

1) Find the equivalent capacitance of the circuit.
2) Find the charge on each capacitor.
3) Find the potential drop across each capacitor.

C2= 5 ?F
?V =
100V
C1= 10 ?F
C3= 15 ?F

The circuit to the right is composed of three capacitors and
a 100 V battery. Assume all capacitors are fully charged.

1) Find the equivalent capacitance of the circuit.
2) Find the charge on each capacitor.
3) Find the potential drop across each capacitor.

C2= 5 ?F
?V =
100V
C1= 10 ?F
C3= 15 ?F

Added by Brett P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

10/21/2022

Step 1

Step 1: To find the equivalent capacitance of the circuit, we can use the formula for capacitors in series: 1/Ceq = 1/C1 + 1/C2 + 1/C3 Show more…

Show all steps

Thanks for your feedback!

C2= 5 μF The circuit to the right is composed of three capacitors and a 100 V battery. Assume all capacitors are fully charged. ΔV = 100V C1= 10 μF 1) Find the equivalent capacitance of the circuit. 2) Find the charge on each capacitor. 3) Find the potential drop across each capacitor. C3= 15 μF
