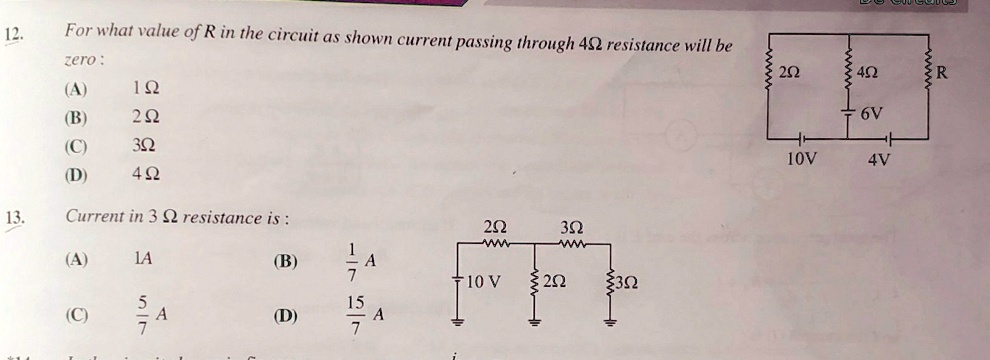

12. For what value of R in the circuit as shown current passing through 4? resistance will be zero: (A) 1 ? (B) 2 ? (C) 3 ? (D) 4 ? 13. Current in 3 ? resistance is : (A) 1A (B) 1/7 A (C) 5/7 A (D) 15/7 A
Added by Gary W.
Close
Step 1
Step 1: Apply Kirchoff's Voltage Law in loop 1: -10 + 2I - 6 = 0 2I = 16 I = 8 A Show moreā¦
Show all steps
Your feedback will help us improve your experience
Madhur L and 80 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
1) What is the equivalent resistance of this circuit? What is the voltage across and current through resistor R1?
Sri K.
1. Consider the following circuit. If the following are the corresponding values of the resistive elements indicated and 15V is applied, a. What is the total equivalent resistance that the voltage source "sees"? b. What is the current, I? Express answer in amperes. Circuit Element Resistance, ohms Circuit Element Resistance, ohms R_1 3 R_8 9 R_2 1 R_9 8 R_3 6 R_10 1 R_4 1 R_11 4 R_5 7 R_12 7 R_6 6 R_13 8 R_7 3 R_14 5
Penny R.
($a$) What is the equivalent resistance of the circuit shown in Fig. 19-82? [$Hint:$ Redraw the circuit to see series and parallel better.] ($b$) What is the current in the 14-$\Omega$ resistor? ($c$) What is the current in the 12-$\Omega$ resistor? ($d$)What is the power dissipation in the 4.5-$\Omega$ resistor? FIGURE 19ā82 Problem 84. (CAN'T COPY THE FIGURE)
