1) Derive an equation for the capacitance C from a parallel-plate capacitor given K as the dielectric constant for a filler medium. 2) Make a graph of the capacitance versus the dielectric constant K of the filler medium.
Added by Tiffany A.
Close
Step 1
85 \times 10^{-12} \, \text{F/m} \)), - \( A \) is the area of the plates, - \( d \) is the separation between the plates. ** Show more…
Show all steps
Your feedback will help us improve your experience
Pritesh Ranjan and 50 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

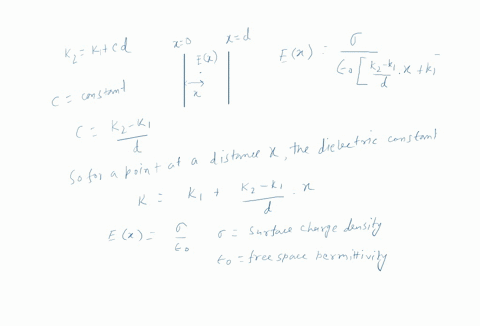

Consider a parallel plate capacitor with area $A$ and plate separation $d$. The dielectric constant of the dielectric inside the capacitor increases linearly from $K_{1}$ at the plate at $x=0$ to $K_{2}$ at $x=d$. Find the capacitance of the arrangement.
Conductors and Capacitance
Capacitance of Conductors

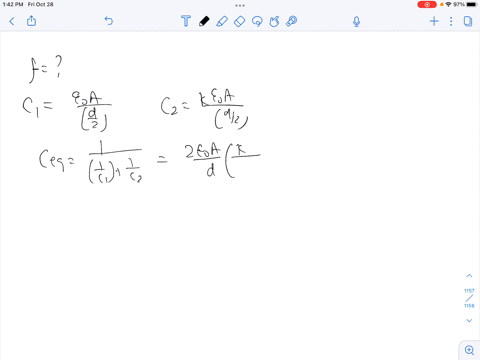

Consider two parallel-plate capacitors identical in shape, one aligned so that the plates are horizontal and the other with the plates vertical. The horizontal capacitor is filled halfway with a material that has dielectric constant K. What fraction f The area of the vertical capacitor should be filled with the same dielectric so that the two capacitors have equal capacitance. Express your answer in terms of K.
Penny R.

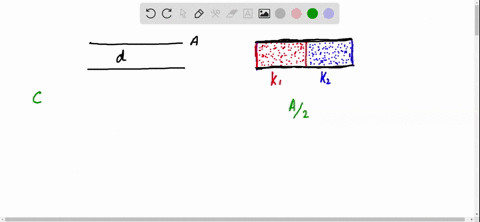

An air-filled parallel-plate capacitor has capacitance $C_{0}$ . If two identically sized dielectric slabs of dielectric constants $K_{1}$ and $K_{2}$ are inserted as shown in Fig. $19-64$ , what is the new capacitance? [Hint: treat this as two capacitors in combination.]
