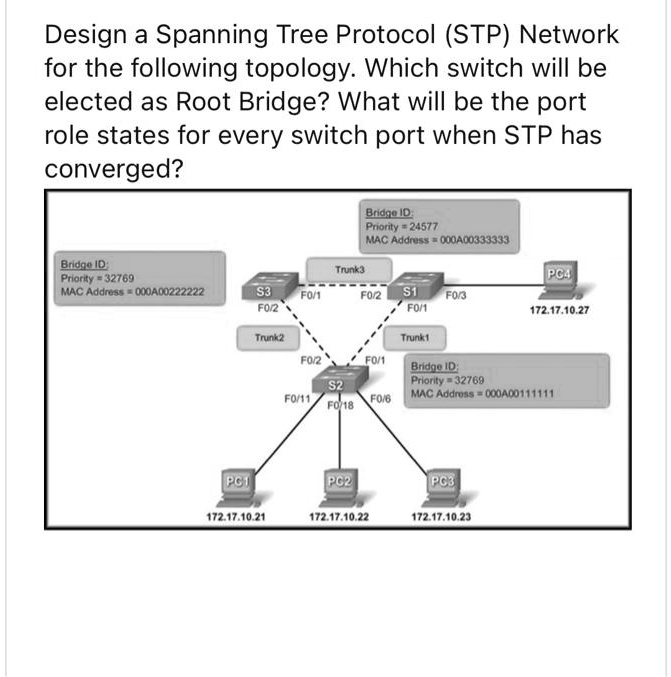

Design a Spanning Tree Protocol (STP) Network for the following topology. Which switch will be elected as Root Bridge? What will be the port role states for every switch port when STP has converged? Bridge ID: Priority = 24577 MAC Address = 000A00333333 Bridge ID: Priority = 32769 MAC Address = 000A00222222 Trunk3 S3 F0/2 F0/1 F0/2 S1 F0/1 F0/3 PC4 172.17.10.27 Trunk2 Trunk1 F0/2 F0/1 Bridge ID: Priority = 32769 F0/11 S2 F0/18 MAC Address = 000A00111111 F0/6 PG1 PC2 PC3 172.17.10.21 172.17.10.22 172.17.10.23
Added by Christopher M.
Close
Step 1
The Bridge ID is a combination of the Bridge Priority and the MAC Address. The switch with the lowest Bridge ID will be elected as the Root Bridge. In this case, the Bridge ID for S1 is 24577:000A00333333 and the Bridge ID for S2 is 32769:000A00222222. Since Show more…
Show all steps
