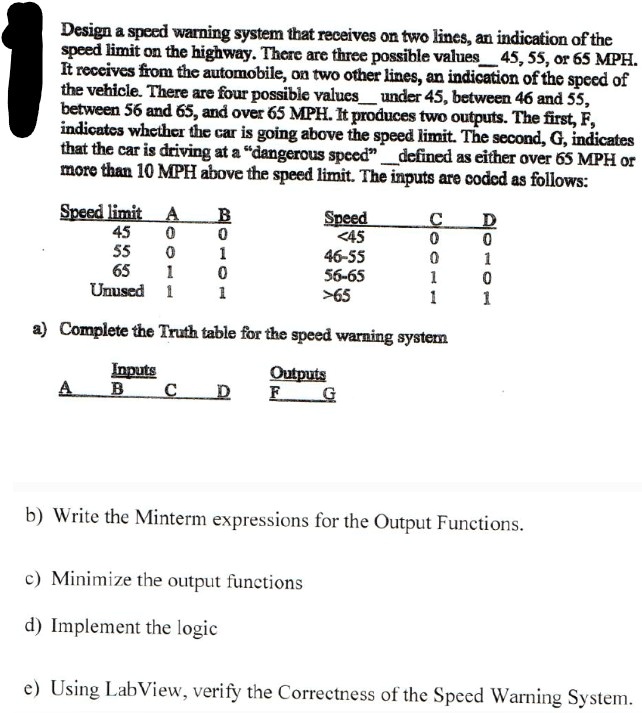

Design a speed warning system that receives on two lines, an indication of the speed limit on the highway. There are three possible values_ 45, 55, or 65 MPH. It receives from the automobile, on two other lines, an indication of the speed of the vehicle. There are four possible values_ under 45, between 46 and 55, between 56 and 65, and over 65 MPH. It produces two outputs. The first, F, indicates whether the car is going above the speed limit. The second, G, indicates that the car is driving at a "dangerous speed" defined as either over 65 MPH or more than 10 MPH above the speed limit. The inputs are coded as follows:
Speed limit A B
Speed C D
45 0 0
<45 0 0
55 0 1
46-55 0 1
65 1 0
56-65 1 0
Unused 1 1
>65 1 1
a) Complete the Truth table for the speed warning system
Inputs Outputs
A B C D F G
b) Write the Minterm expressions for the Output Functions.
c) Minimize the output functions
d) Implement the logic
e) Using LabView, verify the Correctness of the Speed Warning System.
