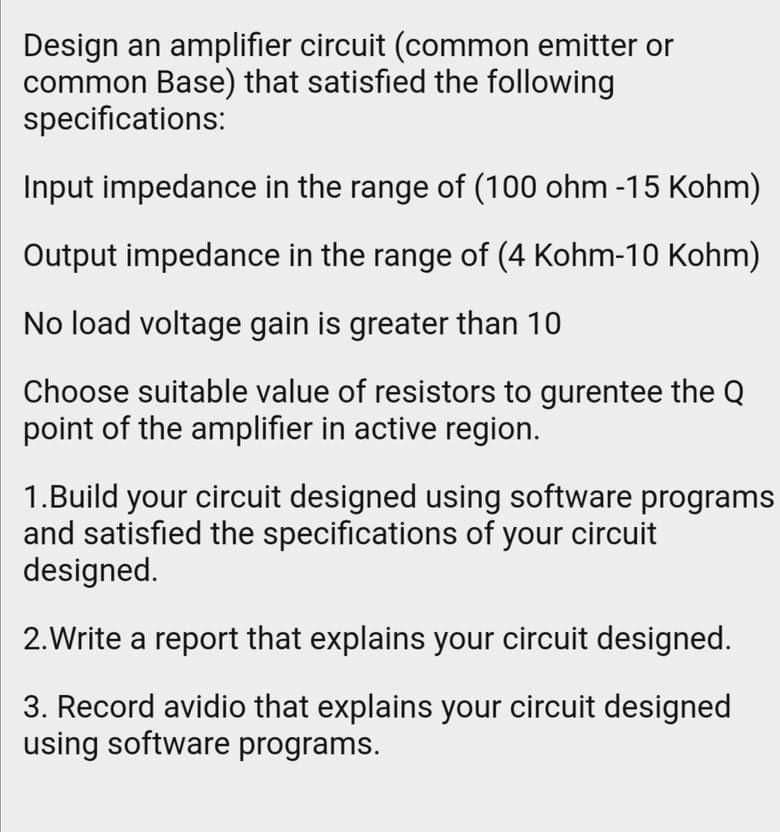

Design an amplifier circuit (common emitter or common Base) that satisfied the following specifications: Input impedance in the range of (100 ohm -15 Kohm) Output impedance in the range of (4 Kohm-10 Kohm) No load voltage gain is greater than 10 Choose suitable value of resistors to gurentee the Q point of the amplifier in active region. 1.Build your circuit designed using software programs and satisfied the specifications of your circuit designed. 2.Write a report that explains your circuit designed. 3. Record avidio that explains your circuit designed using software programs.
Added by Katherine D.
Close
Step 1
The Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 78 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Problem: Design an amplifier that can take an input of ±0.5V from a source with an internal resistance of 100 ohms and deliver it to a 100 ohm load with good linearity and less than 10% attenuation. Requirements: 1. You are limited to DC supplies of ±5V. 2. You are limited to a single transistor (CD4007 MOSFET, 2N3904 NPN BJT, or 2N3906 PNP BJT). 3. You are not allowed to use op-amps. 4. You should be able to explain the choice of circuit, transistor, how the circuit works, and design tradeoffs.
Madhur L.
Design a JFET amplifier circuit. Your design has to meet the following performance specifications: * The voltage gain of the amplifier has to be -20 V. You have ± %10 tolerance gap for your voltage gain. * Your load has to be 2 kΩ resistor. * Your input impedance has to be greater than 500 kΩ You can use as many capacitors and resistors as you would like in your design, however, the values of resistors and capacitors have to be determined by yourselves. After you designed your cascade amplifier circuit, you should test it using a simulation software (Proteus).
Sri K.
1. Design an inverting amplifier with a gain of 4. Use an ideal op amp, a 30 kΩ resistor in the feedback path, and ±12 V power supplies. 2. Using your design from part (a), determine the range of input voltages that will keep the op amp in its linear operating region. 3. Suppose you wish to amplify a 2 V signal, using your design from part (a) with a variable feedback resistor. What is the largest value of feedback resistance that keeps the op amp in its linear operation region? Using this resistor value, what is the new gain of the inverting amplifier?
