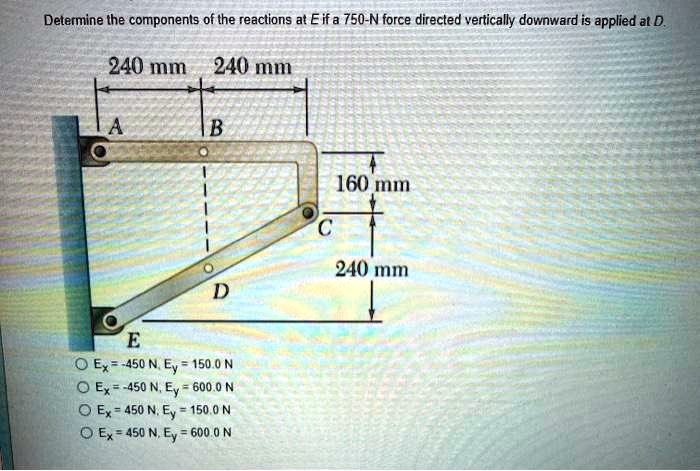

Determine the components of the reactions at E if a 750-N force directed vertically downward is applied at D. 240 mm 240 mm A B 160 mm C 240 mm D E Ex = -450 N, Ey = 150.0 N Ex = -450 N, Ey = 600.0 N Ex = 450 N, Ey = 150.0 N Ex = 450 N, Ey = 600.0 N
Added by Isaac J.
Close
Step 1
- A 750 N force is applied vertically downward at point D. - The reactions at point E are \( E_x \) and \( E_y \). Show more…
Show all steps
