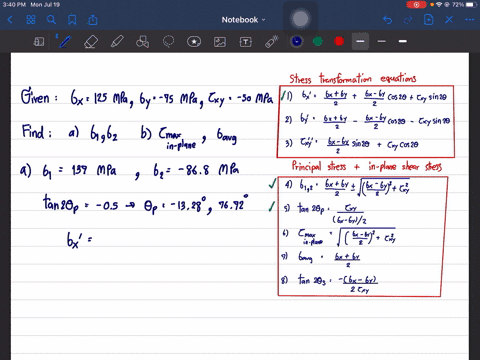

Hello students, in this question we are asked to calculate the determine the equivalent state of stress at a point which represents principal stresses.
00:13
Principal stresses.
00:17
That is a and b.
00:19
The maximum in -plane shear stress.
00:25
In -plane shear stress.
00:29
To calculate both of these things, let's assume a system of weights having stresses, different stresses acting at different points.
00:43
This is sigma 1, this is sigma 2 and this is sigma 3.
00:50
We only need two stresses.
00:53
Sigma 1 and sigma 2 at the end points.
01:01
So the equivalent stress for principal stress, for the equivalent stress can be written down.
01:06

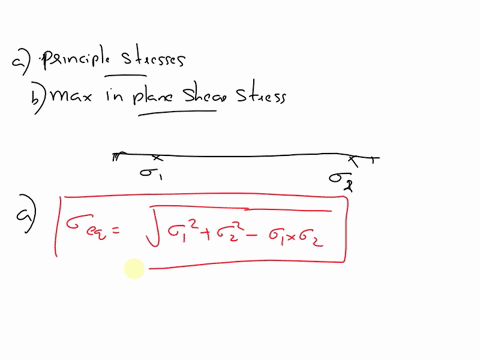

Sigma equivalent will be equal to square root of sigma 1 square plus sigma 2 square plus or minus sigma 1 times sigma 2.
01:16
This will give you the equivalent stress at that point.
01:21
The average, sigma average will be equal to sigma 1 plus sigma 2 by 2.
01:29
So you can use this equation to find that out.
01:31
Now to find the maximum planar stress, b part.
01:35
The maximum planar stress, the current stress also known as tresca stress...
