00:01
Hello everyone.
00:02

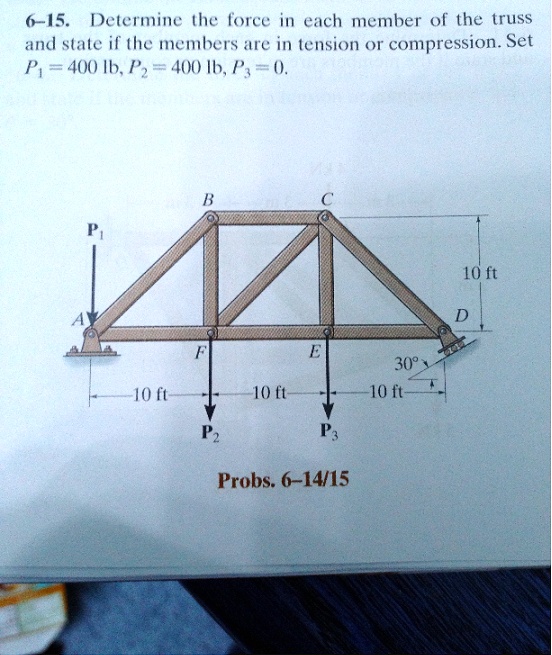

In this lesson, we're analyzing a statistically determinate trust to find the internal forces in its members and determine whether their intention or compression.
00:12
We'll use the method of joints, apply static equilibrium principles, and proceed joint by joint.
00:18
First we calculate reactions as supports.
00:21
We start by summing moments about point d to solve for the vertical reaction at point a.
00:25
Then we'll find d .y from equilibrium.
00:29
We sum vertical forces for d .y.
00:31
Using a sum of f y equals 0, we sum all vertical forces to find the reaction at d.
00:37
We analyzed joint a for members.
00:39
We break down forces into x and y at joint a, treating f -af as acting diagonally.
00:48
Next, we analyze joint d for members.
00:51
Joint d has diagonal and horizontal members, resolved with trig functions from the 30 -degree angle...
