Question

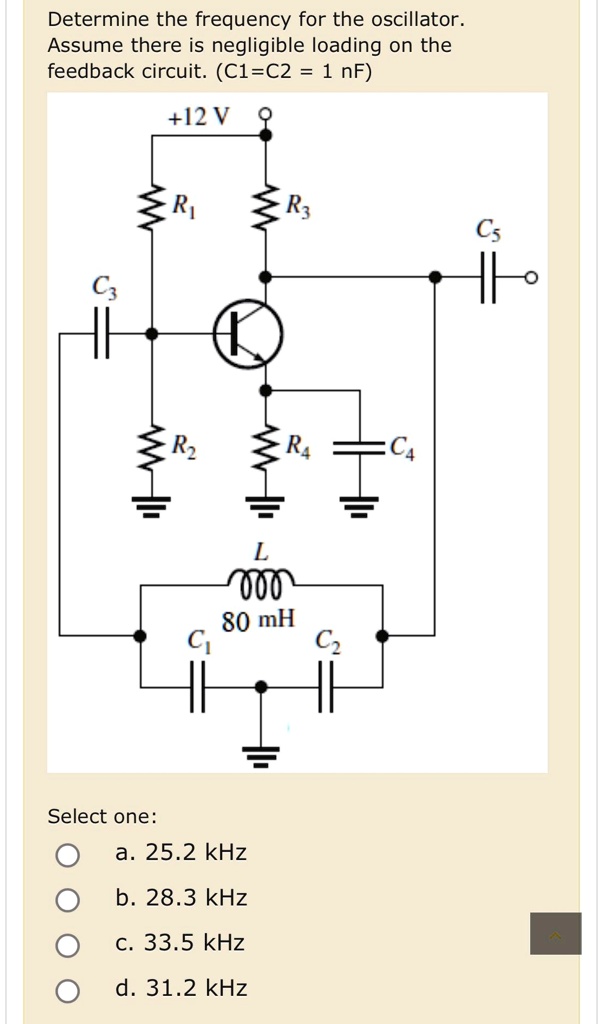

Determine the frequency for the oscillator. Assume there is negligible loading on the feedback circuit. (C1=C2 = 1 nF) +12 V C3 R1 R3 C5 R2 R4 C4 C1 L 80 mH C2 Select one: a. 25.2 kHz b. 28.3 kHz c. 33.5 kHz d. 31.2 kHz

          Determine the frequency for the oscillator.
Assume there is negligible loading on the
feedback circuit. (C1=C2 = 1 nF)
+12 V
C3
R1
R3
C5
R2
R4
C4
C1
L
80 mH
C2
Select one:
a. 25.2 kHz
b. 28.3 kHz
c. 33.5 kHz
d. 31.2 kHz

Added by Kelly R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Thanks for your feedback!

Determine the frequency for the oscillator. Assume there is negligible loading on the feedback circuit. ( C1=C2=1nF ) Select one: a. 25.2kHz b. 28.3kHz c. 33.5kHz d. 31.2kHz Determine the freguency for the oscillator Assume there is negligible loading on the feedback circuit.(C1=C2= 1 nF) +12 V C5 C3 R, R4 CA L 000 80 mH Select one: a.25.2 kHz b.28.3 kHz c.33.5 kHz d.31.2 kHz
