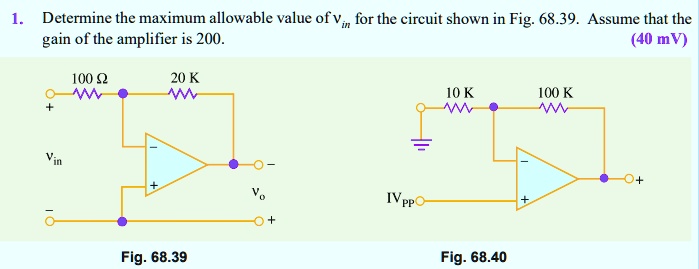

1. Determine the maximum allowable value of v_in for the circuit shown in Fig. 68.39. Assume that the gain of the amplifier is 200. (40 mV)
Added by Laura M.
Close
Step 1
From the given information, we know that the gain of the amplifier is 200. This means that the output voltage (Vo) is 200 times the input voltage (Vin). We can calculate the maximum allowable value of v by considering the voltage divider formed by the resistors Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 93 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Assume that the op amp in the circuit in Fig. P5.20 is ideal. a. Find the output voltage vo when the variable resistor is set to 60kΩ. b. How large can Rx be before the amplifier saturates? 63 kΩ 4.5 kΩ 15 kΩ 400 mV vo Ans (a) vo = 4.8V, (b) Rx = 75kΩ
Adi S.
In a useful application, the amplifier drives a load. The circuit in Fig. P4.18 models this scenario. (a) Sketch the gain $V_{o} / V_{S}$ for $10 \Omega \leq R_{L} \leq \infty$ (b) Sketch $I_{o}$ for $10 \Omega \leq R_{L} \leq \infty$ if $V_{S}=0.1 \mathrm{V}$ (c) Repeat (b) if $V_{s}=1.0 \mathrm{V}$ (d) What is the minimum value of $R_{L}$ if $\left|I_{o}\right|$ must be less than $100 \mathrm{mA}$ for $\left|V_{s}\right|<0.5 \mathrm{V} ?$ (e) What is the current $I_{S}$ if $R_{L}$ is $100 \Omega ?$ Repeat for $R_{L}=10 \mathrm{k} \Omega.$ $$\begin{aligned} &R_{2}=27 \mathrm{k} \Omega\\ &R_{1}=3 \mathrm{k} \Omega \end{aligned}$$
