Question

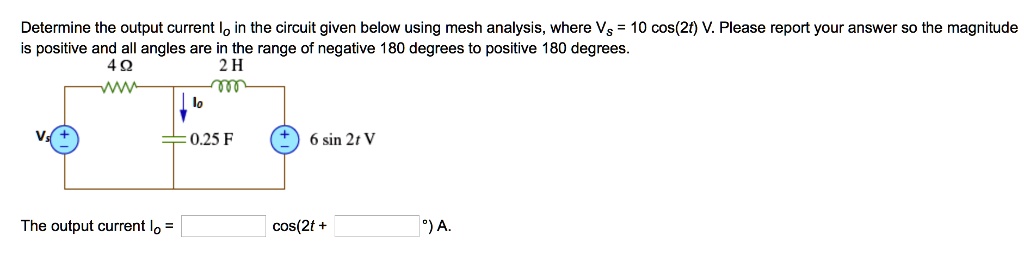

Determine the output current Io in the circuit given below using mesh analysis, where Vs = 10 cos(2t) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 4 ? 2 H Io 0.25 F 6 sin 2t V The output current Io = [ ] cos(2t + [ ]°) A.

          Determine the output current Io in the circuit given below using mesh analysis, where Vs = 10 cos(2t) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees.
4 ?
2 H
Io
0.25 F
6 sin 2t V
The output current Io = [ ] cos(2t + [ ]°) A.

Show more…

Determine the output current Io in the circuit given below using mesh analysis, where Vs = 10 cos(2t) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees.
4 ?
2 H
Io
0.25 F
6 sin 2t V
The output current Io = [ ] cos(2t + [ ]°) A.

Added by Martin O.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

12/07/2023

Step 1

Assign mesh currents: Let's assign mesh currents i1 and i2 as shown in the diagram. Show more…
