4. Determine the output voltage of a differential amplifier for the input voltage of 300 µV and 240 µV. The differential gain of the amplifier is 5000 and the value of CMRR (Ad/Ac, Ad- differential gain, Ac- common mode gain) is (i) 100 (ii) $10^5$ V1=300uV + Vo V2=240uf Ad=5000 1 The differential amplifier for the given data is represented as shown in the figure. 5. Determine the output of the opAmp in this figure: 1000?? W 100 ?? 5VWWW 10VWWW 20 ?? VA VB + 20 ?? Vo

          4. Determine the output voltage of a differential amplifier for the input voltage
of 300 µV and 240 µV. The differential gain of the amplifier is 5000 and the
value of CMRR (Ad/Ac, Ad- differential gain, Ac- common mode gain) is
(i) 100
(ii) $10^5$
V1=300uV
+
Vo
V2=240uf
Ad=5000
1

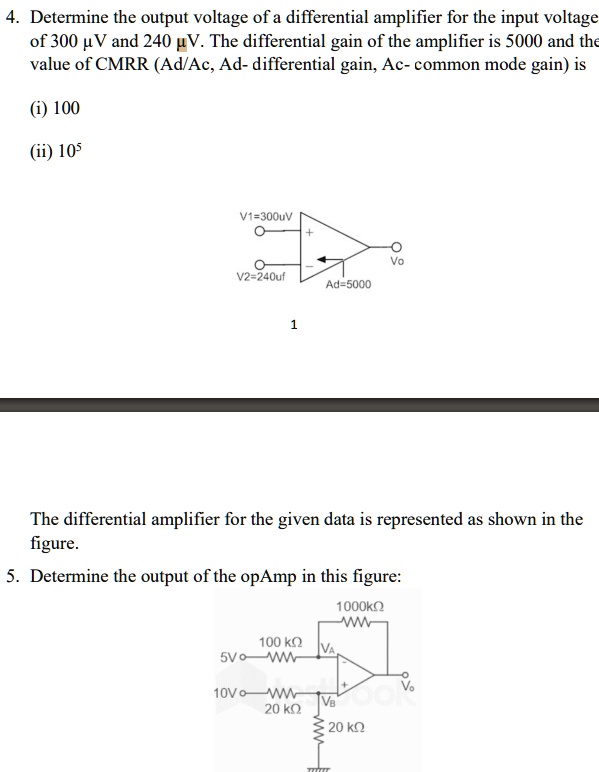

The differential amplifier for the given data is represented as shown in the
figure.
5. Determine the output of the opAmp in this figure:
1000??
W
100 ??
5VWWW
10VWWW
20 ??
VA
VB
+
20 ??
Vo

4. Determine the output voltage of a differential amplifier for the input voltage
of 300 µV and 240 µV. The differential gain of the amplifier is 5000 and the
value of CMRR (Ad/Ac, Ad- differential gain, Ac- common mode gain) is
(i) 100
(ii) 10^5
V1=300uV
+
Vo
V2=240uf
Ad=5000
1
The differential amplifier for the given data is represented as shown in the
figure.
5. Determine the output of the opAmp in this figure:
1000??
W
100 ??
5VWWW
10VWWW
20 ??
VA
VB
+
20 ??
Vo

Added by Whitney C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

06/30/2023

Step 1

Step 1: Calculate the common mode voltage (Vcm) using the formula Vcm = (V1 + V2) / 2 V1 = 300 μV, V2 = 240 μV Vcm = (300 + 240) / 2 = 540 / 2 = 270 μV Show more…

Show all steps

Thanks for your feedback!

Determine the output voltage of a differential amplifier for the input voltage of 300 μV and 240 μV. The differential gain of the amplifier is 5000 and the value of CMRR (Ad/Ac, Ad- differential gain, Ac- common mode gain) is (i) 100 (ii) 10^5. The differential amplifier for the given data is represented as shown in the figure. Determine the output of the opAmp in this figure: 4. Determine the output voltage of a differential amplifier for the input voltage of 300 μV and 240 μV. The differential gain of the amplifier is 5000 and the value of CMRR (Ad/Ac, Ad- differential gain, Ac- common mode gain) is (i) 100 (ii) 105. V1 = 300 μV Vo V2 = 240 μV Ad = 5000 The differential amplifier for the given data is represented as shown in the figure. 5. Determine the output of the opAmp in this figure 1000kΩ MM 100kΩ 5V0 V 10V0 VB 20 kΩ Z 20 kΩ Vo
